Description
Overview

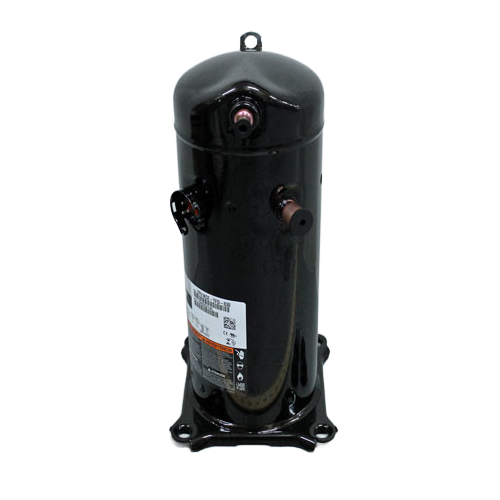

The Copeland ZP61KCE-TFD-830 is a high-efficiency, three-phase hermetic scroll compressor engineered for demanding residential and commercial HVAC applications. Rated at 61,500 BTUH and compatible with R-410A refrigerant, this unit delivers consistent, dependable performance in air conditioning and heat pump systems. Its scroll compressor design minimizes noise and vibration while maximizing energy efficiency — making it an ideal drop-in solution for system upgrades or new installations.
Key Features
- High energy efficiency rating of 11.0+ EER for reduced operating costs
- Hermetic scroll compressor design for quiet, low-vibration operation (74–79 dBA)
- Internal inherent motor protection enhances reliability and longevity
- Compatible with R-410A and R-410B refrigerants
- Dual-frequency operation at 50/60 Hz for flexible application use
- Suited for residential and light commercial air conditioning and heat pump systems
Technical Specifications
- BTU Output: 61,500 BTUH
- Compressor Type: Scroll
- Compressor Housing: Hermetic
- Voltage: 380–420 / 460 VAC
- Phase: 3-Phase
- Amperage: 10.9 A
- Cycle / Hertz: 50/60 Hz
- Refrigerant: R-410A / R-410B
- Sound Level: 74–79 dBA
- Motor Protection: Internal Inherent Protection
- Dimensions: 9.69 x 9.69 x 17.91 inches
- Mounting Dimensions: 7.5 x 7.5 x 18.16 inches
- Weight: 88.8 lbs
- MPN: ZP61KCE-TFD-830
