Description

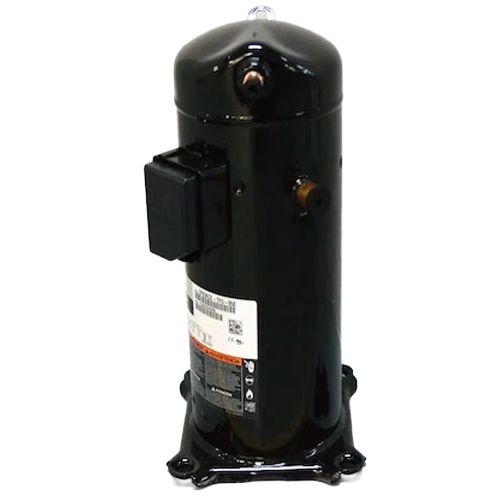

The Copeland ZP83KCE-TF5-950 is a high-performance three-phase scroll compressor engineered for demanding commercial and industrial air conditioning applications. Rated at 83,000 BTU/hr and fully compatible with R-410A refrigerant, this unit delivers consistent, efficient cooling output across a wide range of operating conditions. Its robust scroll design minimizes vibration and noise while maximizing reliability — making it a trusted choice for HVAC professionals who require proven performance in the field.
Product Highlights
- High-capacity 83,000 BTU/hr cooling output for commercial-grade applications
- Three-phase scroll compressor design for smooth, efficient operation
- R-410A refrigerant compatibility for modern, environmentally responsible systems
- Polyolester (POE) oil lubrication for superior component protection and longevity
- Durable construction suited for both commercial and industrial HVAC installations
Electrical Specifications
- Voltage Range: 200–230 VAC
- Frequency: 60 Hz
- Rated Load Amps (RLA): 25–27.9 A
- Amperage Rating: 27.9 A
Technical Specifications
- Compressor Type: Scroll
- Nominal Capacity: 83,000 BTU/hr
- Refrigerant Type: R-410A
- Oil Type: Polyolester (POE)
- Suction Line Size: 7/8 inch
- Discharge Line Size: 1/2 inch
- Frequency: 60 Hz
Physical Specifications
- Weight: 87 lbs
- Dimensions: 9.69 x 9.69 x 17.91 inches
Product Information
- Brand: Copeland
- Manufacturer: Emerson Electric
- SKU: ZP83KCE-TF5-950
