Description

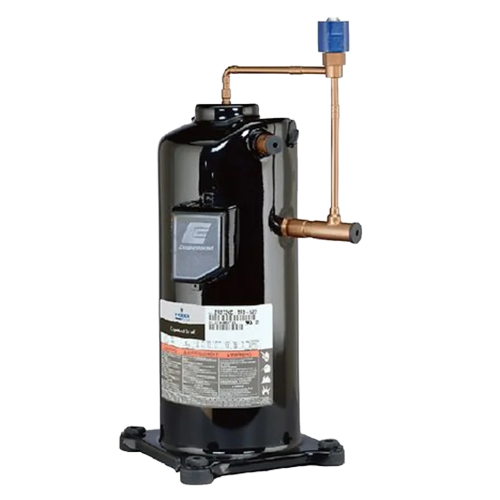

The Copeland ZP90KCE-TF5-950 is a heavy-duty scroll compressor engineered for high-capacity commercial air conditioning and heat pump applications. Delivering 111,000 BTU/hr of cooling output with R-410A refrigerant, this three-phase unit is built to perform reliably in demanding environments where efficiency and uptime are critical.
With a compact 7.5″ x 7.5″ mounting footprint and a robust scroll design, the ZP90KCE-TF5-950 integrates smoothly into a wide range of commercial and industrial HVAC systems. Its 1-1/8″ suction line and 7/8″ discharge line connections support straightforward field installation.
Key Features
- High-capacity 111,000 BTUH cooling output for large commercial systems
- R-410A refrigerant compatible — environmentally responsible and high-efficiency
- 208-230V / 3-Phase / 60 Hz power supply for commercial electrical systems
- Scroll compressor technology for quiet, efficient, and reliable operation
- Suitable for air conditioning (A/C) and heat pump (H/P) applications
- Compact 7.5″ x 7.5″ mounting dimensions for flexible installation
Technical Specifications
- Model Number: ZP90KCE-TF5-950
- Compressor Type: Scroll
- Cooling Capacity: 111,000 BTU/hr
- Refrigerant: R-410A
- Voltage / Phase / Frequency: 208-230 / 3 / 60 Hz
- Suction Line Size: 1-1/8″
- Discharge Line Size: 7/8″
- Mounting Dimensions: 7.5″ x 7.5″
- Weight: 127 lbs
- Applications: A/C, Heat Pump
