Description
Overview

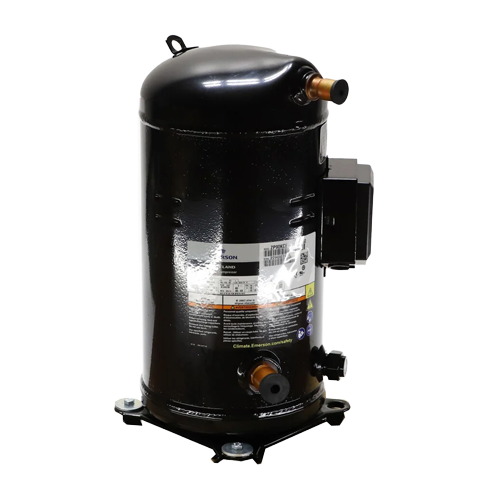

The Copeland ZP90KCE-TFD-950 is a high-capacity scroll compressor engineered for demanding air conditioning and heat pump applications. Rated at 90,500 BTU and operating on 460V/3-phase power, this unit delivers reliable, efficient performance in both commercial and residential installations. Its compact footprint simplifies integration into a wide range of system configurations, while its use of R-410A refrigerant ensures compliance with modern environmental standards.
Key Features
- High-capacity 90,500 BTU cooling output for large-scale comfort applications
- 460V/3-phase operation ideal for commercial and heavy-duty residential systems
- R-410A refrigerant compatibility — environmentally responsible and widely supported
- Compact mounting footprint for flexible installation across various equipment configurations
- Robust scroll compressor design for quiet, efficient, and long-lasting operation
Technical Specifications
- MPN: ZP90KCE-TFD-950
- BTU Output: 90,500 BTU/hr
- Voltage: 460V × 3-Phase
- Refrigerant Type: R-410A
- Phase: Three
- Weight: 127 lbs
- Mounting Dimensions: 7.50 in × 7.50 in
- Discharge Connection Size: 7/8 in
- Suction Line Size: 1-1/8 in
- Application: Standard AC and heat pump systems
