Description
Overview

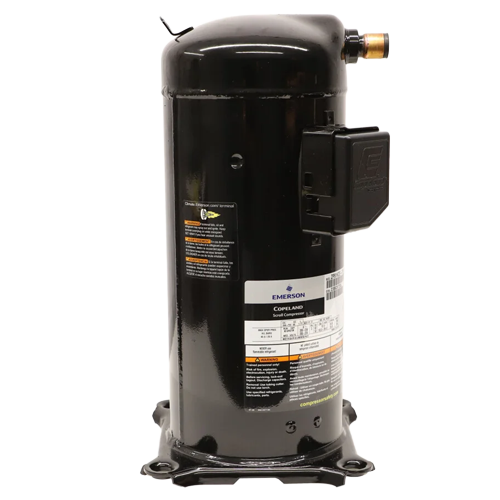

The Copeland ZP91KCE-TF5-950 is a heavy-duty hermetic scroll compressor engineered for demanding commercial HVAC and refrigeration applications. Delivering 90,000 BTU/hr of cooling capacity at 7-1/2 tons, this three-phase unit offers the high efficiency, quiet operation, and long-term reliability that commercial installations require. Its scroll compressor design minimizes moving parts, reducing wear and lowering maintenance costs over the life of the unit.
Key Features
- High-efficiency scroll compressor design for superior reliability and reduced energy consumption
- Hermetic construction protects internal components from contaminants and moisture
- Compatible with environmentally responsible R-410A refrigerant
- Three-phase operation suits commercial and light-industrial electrical systems
- Low-profile sound rating of 75–80 dBA for noise-sensitive installations
- Robust build quality rated at 90 lbs for stable, vibration-resistant mounting
Technical Specifications
- Cooling Capacity: 90,000 BTU/hr (7-1/2 Ton)
- Compressor Type: Scroll (Hermetic)
- Refrigerant: R-410A
- Voltage: 208/230 VAC
- Phase: Three-Phase
- Sound Level: 75–80 dBA
- Weight: 90 lbs
- Dimensions (L x W x H): 9.57 x 9.77 x 17.45 inches
Applications
Ideal for commercial rooftop units, split systems, and packaged cooling equipment where large cooling loads and dependable year-round performance are essential.
