Description
Overview

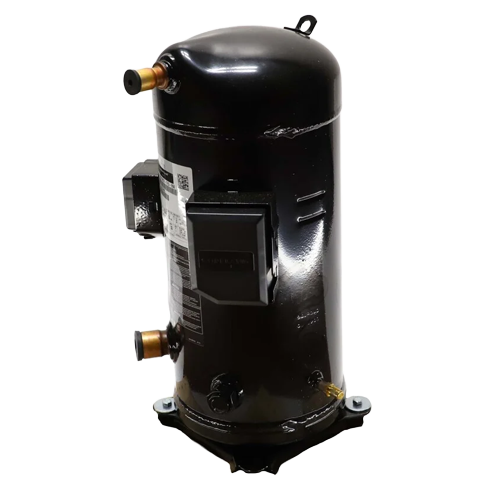

The Copeland ZPD103KCE-TFD-950 is a high-performance digital scroll compressor engineered for demanding commercial and industrial HVAC and refrigeration applications. Leveraging Copeland’s proven Digital Scroll technology, this unit delivers precise capacity modulation, improved energy efficiency, and consistent temperature control — making it an ideal choice for air conditioning and refrigeration systems that require reliable, long-term performance.
Key Features
- Copeland Digital Scroll technology for stepless capacity control and enhanced efficiency
- Compatible with R-410A refrigerant for superior cooling performance and environmental compliance
- Three-phase, 460V operation suited for commercial and industrial power configurations
- Compact scroll design simplifies installation and reduces maintenance requirements
- Wide BTU output range (93,000–105,000 BTU) provides flexibility across system designs
Technical Specifications
- Brand: Copeland
- MPN: ZPD103KCE-TFD-950
- Compressor Type: Digital Scroll
- Voltage: 460 VAC
- Phase: 3-Phase
- Frequency: 60 Hz
- Refrigerant: R-410A
- BTU Output: 93,000–105,000 BTU
- Amperage: 13.4–14.6 A
- Operating Pressure: 200–500 psig
- Displacement: 5.88 in³/rev
- Weight: 134 lbs
