Description

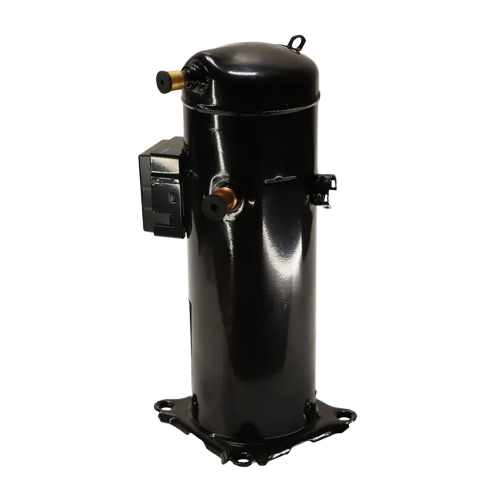

The Copeland ZPS104KCE-TFD-800 is a 2nd generation Copeland Scroll two-stage compressor engineered for dependable, high-efficiency performance in residential and commercial split and packaged air conditioning or heat pump systems. Built on Copeland’s proven scroll platform, this compressor delivers two discrete capacity stages — 67% and 100% — enabling precise load matching, reduced energy consumption, and enhanced comfort.
Key Features
- Two-stage capacity modulation at 67% and 100% for optimized system performance
- Low-complexity modulation design simplifies system integration
- Built on the proven Copeland Scroll platform for outstanding reliability
- Designed for easy compliance transition to 2018 and 2023 efficiency regulations
- Suitable for split and packaged air conditioning or heat pump applications
Specifications
- Application: Air Conditioning / Heat Pump
- Refrigerant Type: HFC
- Capacity Range: 75,000 – 128,500 Btu
- Cooling Efficiency (EER): 11.2 – 20.5 (up to 20.5 EER)
- Frequency: 50 Hz / 60 Hz
- Voltage: 460 VAC (60 Hz) | 380/420 VAC (50 Hz)
- Phase: 3-Phase
- Discharge Connection Size: 3/4 in.
- Suction Connection Size: 1-3/4 in.
- Product Height: 22 in.
