Description

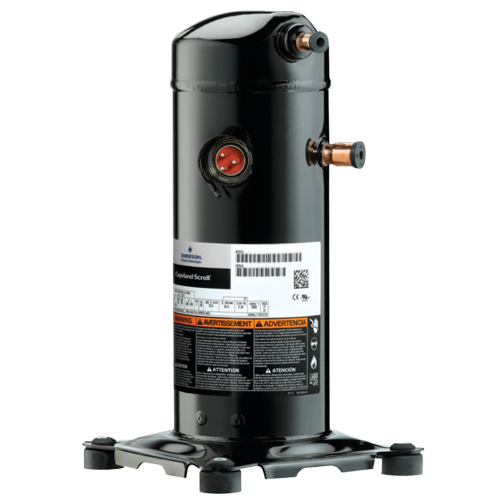

The Copeland ZPS52LXE-PFV-800 is a high-efficiency 5-ton scroll compressor engineered for reliable performance in residential and light commercial cooling applications. Designed to operate with R-410A refrigerant, this unit delivers efficient refrigerant compression and heat exchange across a wide range of system configurations. Powered by a 208-230V single-phase, 60 Hz supply, it features a high-efficiency motor with built-in internal motor protection for long-lasting, dependable operation.
Product Highlights
- High-efficiency scroll compressor design for superior cooling performance
- Built-in internal motor protection for enhanced reliability and longevity
- Compatible with R-410A refrigerant for environmentally responsible operation
- Ideal for residential and light commercial HVAC systems
- Compact base-mount design for straightforward installation
Technical Specifications
- Brand: Copeland
- Model/Part Number: ZPS52LXE-PFV-800
- Refrigerant Type: R-410A
- Capacity: 52,000 BTU/HR
- Tonnage: 5 Tons
- Voltage: 208-230V / 1-Phase / 60 Hz
- Height: 16-7/8 inches
- Mounting Type: 7-1/2 in. x 7-1/2 in. base mount
- Suction Line Fitting: Stub out
- Suction Line Size: 7/8 inches
- Run Capacitor: 40/440
- Gross Weight: 85 lbs
