CPS Blackmax MBH4P5EZ Mechanical Manifold Gauge Set with 2 Valves

BRAND: CPS Products SKU: MBH4P5EZ

$192.58

MSRP: $222.21
You save 13%

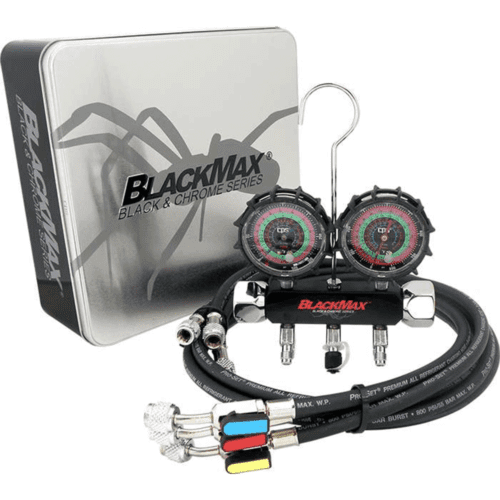

Blackmax Mechanical Manifold Gauge Set with 2 Valves

Free Shipping
Ships Today
Availability:

10 In Stock

Description

The CPS MBH4P5EZ is a BlackMax® Black & Chrome series 2 valve anodized aluminum block body with ¼” SAE 45° fittings, Triple Seal™ piston valves, easy-to-read 3 â…›” (80mm) Class 1.0 accuracy gauges, protective gauge boots, extra access port in the center with Schrader® valve, premium 5ft Pro-Set® Black & Chrome hoses with 45° anti-blowback valves on end and hanging hook.

Features
  • Precision machined aircraft aluminum block bodies
  • Extremely accurate Class 1.0 3 1/8″ metal cased gauges with protective boot
  • Easy-to-read R-134a / 22 / 404A / 410A refrigerant scales
  • Non-permeating B & C hoses with 800 PSI working pressure, 4,000 PSI burst
  • Available in Vortech ® Deep Vacuum or Triple-Seal ™ valve configurations
Proprietary Triple-Sealâ„¢ Valve System
  • Three Super Neoprene o-ring design
  • Back seating o-ring seals valve nut when fully open
  • Valve stem retracts fully to provide maximum flow
  • Mirror-like port fi nish for smooth accurate metering
Proprietary Vortech ® Deep Vacuum Valve System
  • Certified 15 micron vacuum rating
  • Precision machined virgin Teflon core
  • Full, unrestricted refrigerant flow
  • Light touch valve operation

Additional information

Gauge Diameter

3-1/8", 80mm

Refrigerant Type

22, 404A, 410A, R-134a

Valve Type

Triple Seal?? piston valves

Hose

3 premium 5ft Pro-Set? Black & Chrome Pro-Set? hoses with ??? SAE 45? ball valves on ends

Warranty

1 Year

UPC 750377101571
