Description

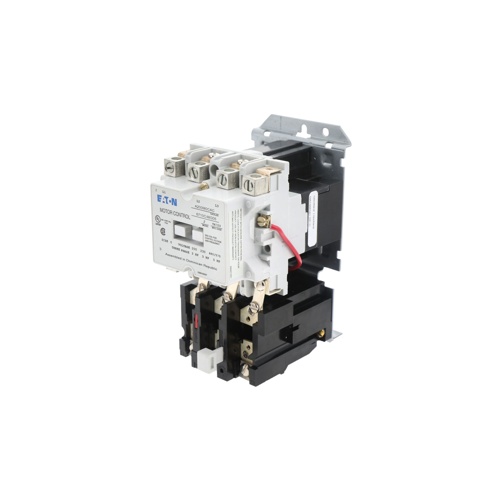

The Cutler Hammer-Eaton A200M0CAC is a heavy-duty, non-reversing NEMA motor starter engineered for reliable motor control in commercial and industrial HVAC applications. Rated at NEMA Size 0 with a 110/120V AC, 50/60 Hz coil, this starter delivers dependable single- or three-phase motor protection in an open-type enclosure.
At the heart of this unit is an ambient-compensated bimetallic manual reset thermal overload relay, which automatically adjusts trip thresholds based on surrounding temperature — ensuring accurate, consistent motor protection regardless of the installation environment. The manual reset design prevents unintended automatic restarts after a trip event, adding an important layer of operational safety.
Key Features
- NEMA Size 0 motor starter rated for up to 18 amps
- 110/120V AC coil voltage at 50/60 Hz for broad compatibility
- 3-pole configuration for single- or three-phase non-reversing applications
- Open-type enclosure for panel or enclosure mounting flexibility
- Ambient-compensated bimetallic thermal overload relay for accurate trip protection
- Manual reset thermal overload — prevents automatic restart after fault
- Reliable Cutler Hammer-Eaton construction for long service life
Specifications
- SKU: A200M0CAC
- Brand: Cutler Hammer-Eaton
- Coil Voltage: 110/120V AC, 50/60 Hz
- Number of Poles: 3
- Amperage Rating: 18 Amps
- NEMA Size: 0
- Enclosure Type: Open
- Operation: Non-Reversing
- Phase: Single or Three Phase
- Overload Type: Ambient Compensated Bimetallic, Manual Reset
Applications
- Commercial HVAC motor control panels
- Chiller and air handler motor starters
- Pump and fan motor control in mechanical rooms
- Industrial motor protection and switching
