Description
Overview

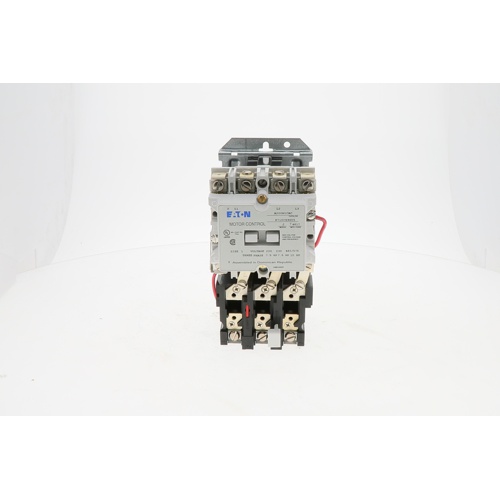

The Cutler Hammer-Eaton A200M1CAC is a NEMA Size 1, non-reversing motor starter engineered for reliable single- or three-phase motor control in commercial and industrial HVAC applications. With a 110/120V AC, 50/60 Hz coil voltage and a 27-amp rating, this starter delivers robust performance across a wide range of motor loads while maintaining compatibility with standard control circuits.
Key Features
- NEMA Size 1 motor starter rated for up to 27 amps
- 110/120V AC, 50/60 Hz coil voltage for broad control circuit compatibility
- 3-pole configuration for single- or three-phase non-reversing applications
- Open type enclosure for easy installation in panel boards or custom enclosures
- Ambient compensated bimetallic thermal overload relay with manual reset for reliable motor protection
- Non-reversing design simplifies wiring and reduces installation time
Thermal Overload Protection
The integrated ambient compensated bimetallic thermal overload relay automatically adjusts trip thresholds based on surrounding temperature, ensuring accurate motor protection regardless of the installation environment. The manual reset function requires deliberate operator action before restarting, preventing nuisance restarts after a fault condition.
Specifications
- SKU: A200M1CAC
- Brand: Cutler Hammer-Eaton
- Coil Voltage: 110/120V AC, 50/60 Hz
- Amperage Rating: 27 Amps
- Number of Poles: 3
- NEMA Size: 1
- Enclosure Type: Open
- Operation: Non-Reversing
- Phase Compatibility: Single or Three Phase
- Overload Type: Ambient Compensated Bimetallic, Manual Reset
Applications
Ideal for controlling compressors, fans, pumps, and other motor-driven HVAC equipment in commercial and light industrial settings where dependable overload protection and straightforward non-reversing motor control are required.
