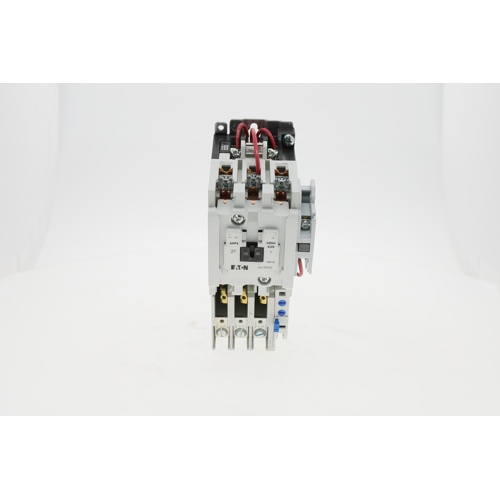

Cutler Hammer-Eaton AN16DN0CB NEMA Size 1 Non-Reversing Motor Starter

Description

The Cutler Hammer-Eaton AN16DN0CB is a heavy-duty NEMA Size 1 non-reversing motor starter engineered for reliable single- or three-phase motor control in commercial and industrial HVAC applications. Featuring a 440/480VAC 50/60 Hz coil and a robust open-type enclosure, this starter delivers dependable performance across a wide range of motor loads.

Key Features

• NEMA Size 1 motor starter for single- or three-phase non-reversing applications
• 440/480VAC, 50/60 Hz coil voltage for broad compatibility
• 3-pole configuration with 27 continuous amp rating
• Open-type enclosure for easy installation in existing panel or enclosure assemblies
• Ambient compensated bimetallic overload relay for accurate motor protection across varying temperatures
• Includes one normally open (NO) auxiliary contact for control circuit flexibility
• Non-reversing design suitable for standard single-direction motor applications

Specifications

• SKU: AN16DN0CB
• Brand: Cutler Hammer-Eaton
• Coil Voltage: 440/480VAC
• Frequency: 50/60 Hz
• Poles: 3
• Continuous Amp Rating: 27A
• NEMA Size: 1
• Enclosure Type: Open
• Phase: Single or Three Phase
• Operation: Non-Reversing
• Overload Relay: Ambient Compensated Bimetallic
• Auxiliary Contact: One Normally Open (NO)

Application

Ideal for controlling HVAC motors, fan motors, pump motors, and other industrial loads requiring dependable overcurrent protection. The ambient compensated bimetallic overload relay ensures accurate trip characteristics regardless of surrounding temperature fluctuations — a critical feature in mechanical rooms and equipment enclosures where ambient conditions can vary significantly.
