Cutler Hammer-Eaton AN16DN0TB NEMA Size 1 Non-Reversing Motor Starter, 24VAC

Description

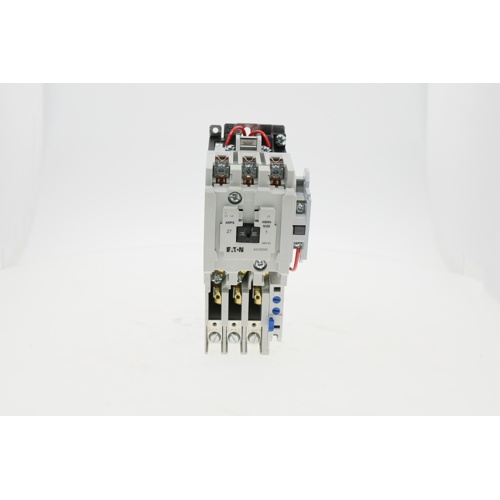

Cutler Hammer-Eaton AN16DN0TB NEMA Size 1 Non-Reversing Motor Starter

The Cutler Hammer-Eaton AN16DN0TB is a full-featured NEMA Size 1 non-reversing motor starter engineered for reliable single- or three-phase motor control in commercial and industrial HVAC applications. Rated for 27 continuous amps and equipped with a 24VAC 60Hz control coil, this starter delivers dependable performance in open-type enclosure installations where space and accessibility are priorities.

Key Features

• Control coil voltage: 24VAC, 60Hz — compatible with standard low-voltage HVAC control circuits
• 3-pole configuration for single- or three-phase motor applications
• 27 continuous amp rating — NEMA Size 1
• Open type enclosure for panel or enclosure mounting flexibility
• Non-reversing design for straightforward across-the-line motor starting
• Ambient compensated bimetallic overload relay for accurate motor protection across varying ambient temperatures
• Includes one normally open (NO) auxiliary contact for control circuit interlocking or status indication

Overload Protection

The integrated ambient compensated bimetallic overload relay automatically adjusts trip thresholds based on surrounding temperature, ensuring consistent and accurate motor protection whether the starter is installed in a warm mechanical room or a cool electrical panel. This eliminates nuisance trips and provides true motor protection under real-world operating conditions.

Application

Ideal for use with HVAC fan motors, pump motors, compressors, and other single- or three-phase motor loads found in commercial building mechanical systems. The 24VAC coil voltage integrates seamlessly with standard HVAC control wiring and building automation systems.

Specifications

• SKU: AN16DN0TB
• Brand: Cutler Hammer-Eaton
• Coil Voltage: 24VAC, 60Hz
• Poles: 3
• Continuous Amp Rating: 27A
• NEMA Size: 1
• Enclosure Type: Open
• Motor Phase: Single or Three Phase
• Starter Type: Non-Reversing
• Overload Relay: Ambient Compensated Bimetallic
• Auxiliary Contact: One Normally Open (NO)
