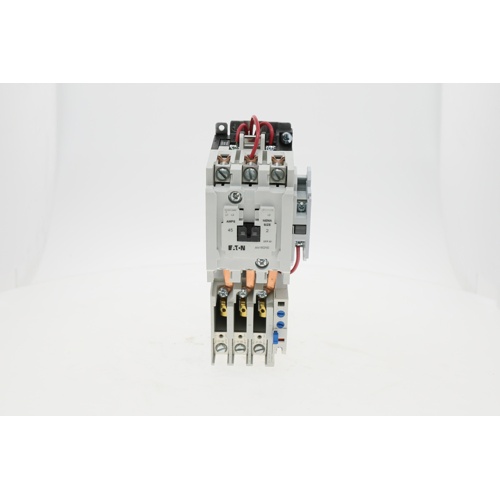

Cutler Hammer-Eaton AN16GN0CB NEMA Size 2 Non-Reversing Motor Starter

Description

The Cutler Hammer-Eaton AN16GN0CB is a heavy-duty NEMA Size 2 non-reversing motor starter engineered for reliable motor control in demanding commercial and industrial HVAC applications. Designed for single- or three-phase loads, this starter combines a robust 3-pole contactor with an ambient-compensated bimetallic overload relay to deliver dependable overload protection across a wide range of operating environments.

Key Features

• NEMA Size 2 motor starter rated for up to 45 continuous amps
• 440/480VAC, 50/60 Hz control coil for compatibility with standard commercial power systems
• 3-pole construction supports single- or three-phase non-reversing motor applications
• Open type enclosure for flexible panel or enclosure mounting
• Ambient-compensated bimetallic overload relay provides accurate motor protection regardless of surrounding temperature fluctuations
• Includes one normally open (NO) auxiliary contact for control circuit integration

Application

Ideal for controlling compressor motors, fan motors, pump motors, and other HVAC equipment requiring dependable full-voltage non-reversing motor starting. The ambient-compensated overload relay is especially suited for mechanical rooms and equipment areas where ambient temperatures may vary, ensuring consistent trip accuracy and motor protection.

Specifications

• SKU: AN16GN0CB
• Brand: Cutler Hammer-Eaton
• NEMA Size: 2
• Continuous Amp Rating: 45A
• Coil Voltage: 440/480VAC, 50/60 Hz
• Poles: 3
• Enclosure Type: Open
• Phase: Single or Three Phase
• Operation: Non-Reversing
• Overload Relay: Ambient Compensated Bimetallic
• Auxiliary Contact: One Normally Open (NO)
