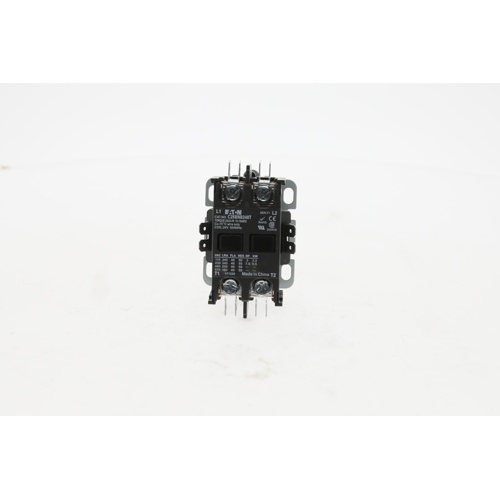

Cutler Hammer-Eaton C25BNB240T Definite Purpose Compact Contactor Overview
The Cutler Hammer-Eaton C25BNB240T is a non-reversing definite purpose compact contactor engineered for reliable switching in HVAC and light commercial electrical applications. With a 24VAC 50/60Hz coil voltage, 2-pole configuration, and a 40-amp rating, this contactor delivers dependable performance for compressors, condensing units, fan motors, and other definite purpose loads.
Key Features
- Coil Voltage: 24VAC, 50/60Hz — compatible with standard HVAC control circuits
- 2-Pole configuration for single-phase load switching
- 40 Amp load rating for robust, high-current applications
- Non-reversing design for straightforward motor and compressor control
- Open type enclosure for easy installation in existing panels or enclosures
- Includes metal mounting plate for secure, vibration-resistant installation
- Compact footprint saves panel space without sacrificing performance
Application
The C25BNB240T is ideally suited for HVAC systems requiring dependable definite purpose contactors. Common applications include air conditioning compressors, condenser fan motors, heat pumps, and other single-phase motor loads in residential and light commercial settings. The 24VAC coil integrates seamlessly with standard low-voltage thermostat and control circuits.
Product Specifications
- Brand: Cutler Hammer-Eaton
- SKU / Part Number: C25BNB240T
- Coil Voltage: 24VAC, 50/60Hz
- Number of Poles: 2
- Amperage Rating: 40 Amps
- Enclosure Type: Open Type
- Operation Type: Non-Reversing
- Contactor Type: Definite Purpose Compact
- Mounting: Metal Mounting Plate Included
