Description

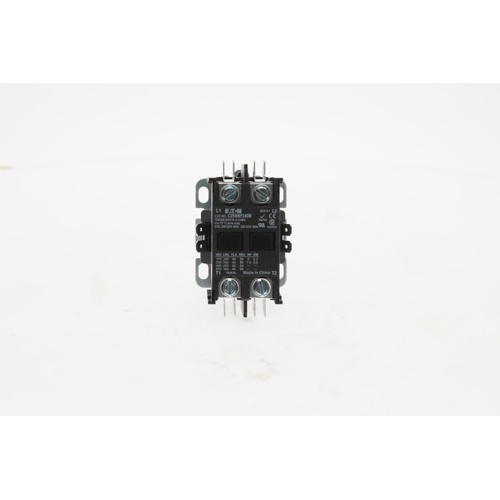

The Cutler Hammer-Eaton C25BNF240B is a non-reversing definite purpose compact contactor engineered for reliable switching performance in HVAC and light commercial electrical applications. Featuring a 208–240VAC, 50/60 Hz coil, this contactor is well-suited for controlling compressors, fan motors, and other motor loads where dependable operation and compact installation are required.
Built with an open type enclosure and supplied with a metal mounting plate, the C25BNF240B installs easily into existing panels and equipment enclosures. Its compact footprint makes it an ideal replacement or upgrade choice for space-constrained installations without sacrificing load-handling capacity.
Key Features
- Non-reversing definite purpose compact contactor design
- 2-pole configuration for single-phase load control
- 40-amp load rating for demanding HVAC motor applications
- 208–240VAC coil voltage, 50/60 Hz compatible
- Open type enclosure for panel or enclosure mounting
- Includes metal mounting plate for secure installation
- Compact form factor suitable for space-constrained applications
Specifications
- SKU: C25BNF240B
- Brand: Cutler Hammer-Eaton
- Poles: 2
- Amperage: 40 Amps
- Coil Voltage: 208–240VAC
- Frequency: 50/60 Hz
- Enclosure Type: Open
- Operation: Non-Reversing
- Mounting: Metal Mounting Plate Included
Common Applications
- HVAC compressor and condenser fan motor control
- Light commercial refrigeration equipment
- Air conditioning and heat pump systems
- General-purpose motor switching in commercial and industrial settings
