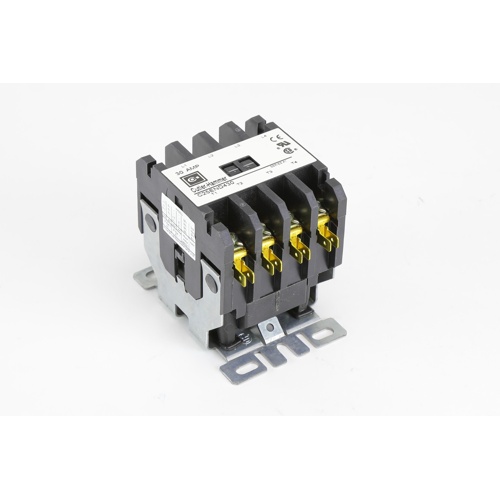

Description
The Cutler Hammer-Eaton C25END430B is a heavy-duty, non-reversing definite purpose contactor engineered for reliable switching in commercial and residential HVAC, refrigeration, and motor control applications. Built to handle the demanding start-and-stop cycles common in air conditioning compressors, fan motors, and other electrical loads, this contactor delivers consistent performance and long service life.
Key Features
- Non-reversing definite purpose contactor — ideal for HVAC compressors, condensing units, and motor loads
- 4-pole configuration for flexible multi-circuit switching
- 30-amp load rating for robust current handling
- 208/240VAC coil voltage, 50/60Hz — compatible with standard single-phase and light commercial power supplies
- Open type enclosure for easy installation in control panels and electrical enclosures
- Includes metal mounting plate for secure, vibration-resistant installation
- Designed for high cycle life to withstand frequent switching demands
Specifications
- SKU: C25END430B
- Brand: Cutler Hammer-Eaton
- Coil Voltage: 208/240VAC, 50/60Hz
- Number of Poles: 4
- Amperage Rating: 30 Amps
- Contactor Type: Non-Reversing Definite Purpose
- Enclosure Type: Open
- Mounting: Metal Mounting Plate Included
Applications
- Air conditioning and refrigeration compressors
- Condenser and evaporator fan motors
- Commercial HVAC equipment control panels
- Pump and motor load switching
- Light commercial and industrial electrical systems
The C25END430B is part of Eaton’s trusted Cutler-Hammer line of definite purpose contactors, recognized across the HVAC and electrical trades for quality construction and dependable operation. The included metal mounting plate simplifies installation and ensures a secure fit in a wide range of panel configurations.
