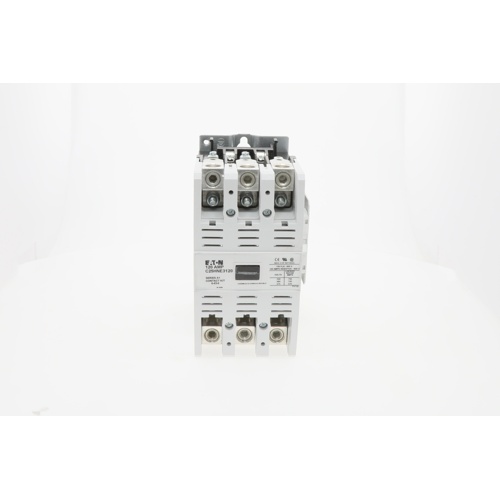

Cutler Hammer-Eaton C25HNE3120B Definite Purpose Contactor Overview
The Cutler Hammer-Eaton C25HNE3120B is a heavy-duty, non-reversing definite purpose contactor engineered for reliable switching in HVAC, refrigeration, and commercial electrical applications. With a robust 120-amp rating and a 3-pole configuration, this contactor is built to handle the demanding load requirements of air conditioning compressors, heat pumps, chillers, and other motor-driven equipment.
Key Features
- 3-Pole, non-reversing definite purpose contactor
- 120 Amp load rating for high-capacity applications
- 208/240VAC coil voltage, compatible with 50/60 Hz systems
- Open type enclosure for versatile panel or enclosure mounting
- Includes metal mounting plate for secure, stable installation
- Designed for single-speed, non-reversing motor and compressor loads
- Suitable for HVAC, refrigeration, and commercial electrical systems
Specifications
- SKU / Part Number: C25HNE3120B
- Brand: Cutler Hammer-Eaton
- Poles: 3
- Amperage: 120 Amps
- Coil Voltage: 208/240VAC
- Coil Frequency: 50/60 Hz
- Enclosure Type: Open Type
- Operation: Non-Reversing
- Mounting: Metal Mounting Plate Included
- Contactor Type: Definite Purpose
Application
Definite purpose contactors like the C25HNE3120B are specifically designed for HVAC and refrigeration duty cycles, offering superior performance over general-purpose contactors in these environments. The open-type enclosure makes this unit ideal for installation inside existing electrical panels, equipment cabinets, or custom enclosures. The included metal mounting plate simplifies installation and ensures a secure, vibration-resistant fit in the field.
Why Choose the Eaton C25HNE3120B?
- Engineered for the rigorous demands of HVAC and refrigeration duty
- High 120A capacity supports large compressor and motor loads
- Dual-voltage 208/240VAC coil provides installation flexibility
- Trusted Cutler Hammer-Eaton quality and reliability
- Metal mounting plate included — ready for quick field installation
