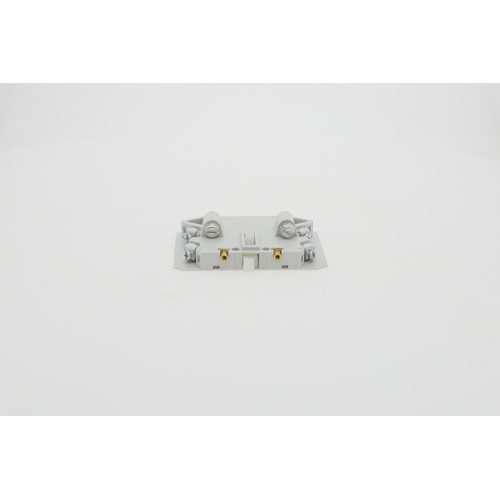

Cutler Hammer-Eaton C320KGS42 1NO/1NC Base Auxiliary Contact NEMA 4-5 IEC P-S

Description

The Cutler Hammer-Eaton C320KGS42 is a base-mount auxiliary contact block designed to expand the switching and monitoring capabilities of compatible motor starters and contactors. Featuring one normally open (NO) and one normally closed (NC) contact, this unit provides reliable status signaling and interlocking in a wide range of industrial and commercial control applications.

Key Features

• One normally open (1NO) and one normally closed (1NC) contact configuration
• Base-mount design for direct attachment to compatible contactors and starters
• Compatible with NEMA Size 4 and Size 5 starters
• Compatible with IEC Size P and Size S contactors
• Engineered for dependable auxiliary switching in motor control circuits
• Compact construction for easy integration into existing control panels

Application

The C320KGS42 is ideal for use in motor control centers, HVAC equipment panels, and industrial automation systems where auxiliary contact expansion is required. The 1NO/1NC arrangement allows for both run-status indication and safety interlocking within the same contact block, reducing panel wiring complexity.

Compatibility

• NEMA Size 4 starters
• NEMA Size 5 starters
• IEC Size P contactors
• IEC Size S contactors

Specifications

• SKU: C320KGS42
• Contact Type: 1 Normally Open (NO) / 1 Normally Closed (NC)
• Mounting Style: Base auxiliary
• Compatible Standards: NEMA and IEC
• Brand: Cutler Hammer-Eaton
