Description

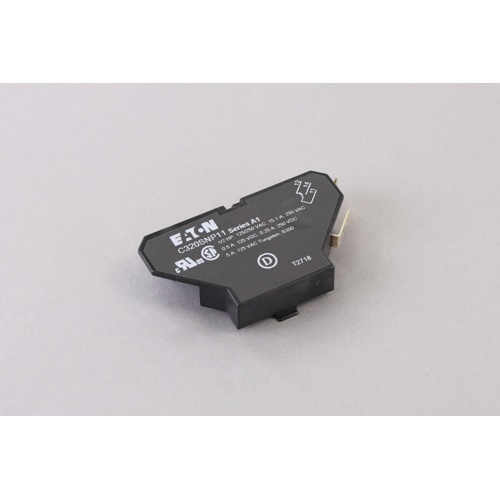

The Cutler Hammer-Eaton C320SNP11 is a side-mounted snap switch auxiliary contact designed to expand the monitoring and control capabilities of Eaton’s definite purpose contactors rated from 15A to 75A. Featuring one normally open (NO) and one normally closed (NC) contact configuration, this auxiliary contact block provides reliable status signaling and interlocking for a wide range of HVAC and light commercial control applications.
Key Features
- One normally open (1NO) and one normally closed (1NC) snap switch contact configuration
- Side-mounted design for easy, tool-friendly installation on compatible definite purpose contactors
- Quick connect terminals for fast, secure wiring connections
- Compatible with Eaton/Cutler-Hammer definite purpose contactors rated 15A through 75A
- Ideal for auxiliary control, status indication, and interlocking circuits
- Compact form factor minimizes panel space requirements
Application
The C320SNP11 is engineered for use in HVAC systems, refrigeration equipment, and light commercial electrical panels where definite purpose contactors require auxiliary contact monitoring. The snap switch mechanism ensures positive, reliable switching action, while quick connect terminals speed up field installation and reduce wiring errors.
Compatibility
- Designed for Eaton/Cutler-Hammer definite purpose contactors: 15A, 20A, 25A, 30A, 40A, 50A, 60A, and 75A ratings
- Side-mount attachment — does not require modification of the base contactor
Product Specifications
- SKU: C320SNP11
- Brand: Cutler Hammer-Eaton
- Contact Type: 1NO + 1NC (Normally Open / Normally Closed)
- Mounting Style: Side Mounted
- Switch Type: Snap Switch
- Terminal Type: Quick Connect
- Compatible Contactor Range: 15A–75A Definite Purpose Contactors
