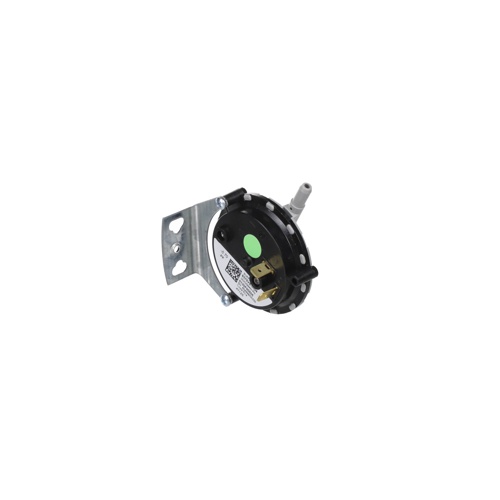

Daikin-McQuay 0130F00505 SPST Pressure Switch Overview
The Daikin-McQuay 0130F00505 is an OEM replacement SPST (Single-Pole, Single-Throw) pressure switch engineered for use in Daikin-McQuay commercial HVAC equipment. With a setpoint of -0.70″ WC (inches water column), this switch is designed to monitor negative pressure conditions — such as those found in induced-draft or venting systems — and interrupt the control circuit when pressure falls outside the safe operating range.
Key Features
- OEM Daikin-McQuay replacement part — direct-fit for compatible equipment
- SPST (Single-Pole, Single-Throw) switching action for straightforward circuit control
- Setpoint: -0.70″ WC (negative pressure) for precise system protection
- Monitors negative pressure in draft-inducer and venting applications
- Helps prevent unsafe operation when proper draft or airflow is not established
- Compact, durable construction for long service life in demanding HVAC environments
Application
This pressure switch is a critical safety and operational component in Daikin-McQuay commercial rooftop units, air handlers, and other HVAC systems that utilize induced-draft blowers or pressure-proving circuits. It ensures the system will not operate unless the correct negative pressure is achieved, protecting heat exchangers and venting components from damage.
Product Specifications
- SKU / Part Number: 0130F00505
- Brand: Daikin-McQuay
- Switch Type: SPST (Single-Pole, Single-Throw)
- Setpoint: -0.70″ WC
- Application: Commercial HVAC pressure proving / safety circuit
Why Choose Jackson Systems?
Jackson Systems stocks a wide selection of OEM and aftermarket HVAC controls and components. Order the Daikin-McQuay 0130F00505 with confidence and get the right part the first time.
