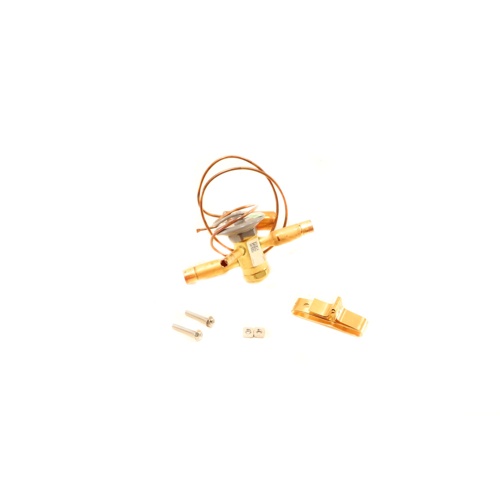

Daikin-McQuay 106697007 TXV 3-Ton R-22 1/2″ x 1/2″ ODF 1/4″ EE

Description

Daikin-McQuay 106697007 Thermostatic Expansion Valve Overview

The Daikin-McQuay 106697007 is a factory-engineered Thermostatic Expansion Valve (TXV) designed for reliable, precise refrigerant metering in R-22 refrigeration and air conditioning systems. Rated for 3-ton capacity, this valve delivers consistent superheat control to optimize system efficiency and protect the compressor from liquid slugging.

Key Features

• Thermostatic Expansion Valve (TXV) engineered for R-22 refrigerant systems
• 3-ton capacity rating for residential and light commercial applications
• 1/2″ x 1/2″ ODF (Outside Diameter Flare) inlet and outlet connections for straightforward field installation
• 1/4″ external equalizer (EE) port for accurate downstream pressure sensing and precise superheat control
• OEM-quality Daikin-McQuay component for direct replacement or new installation
• Helps maintain optimal evaporator performance and system efficiency

Specifications

• SKU: 106697007
• Valve Type: Thermostatic Expansion Valve (TXV)
• Refrigerant: R-22
• Capacity: 3 Ton
• Inlet Connection: 1/2″ ODF
• Outlet Connection: 1/2″ ODF
• Equalizer Type: External (1/4″ EE port)
• Brand: Daikin-McQuay

Application

This TXV is suited for use in split-system air conditioners, heat pumps, and refrigeration equipment using R-22 refrigerant. The external equalizer connection allows the valve to compensate for pressure drops across the evaporator distributor, making it ideal for multi-circuit evaporator coils. Always verify system compatibility and follow all applicable codes and manufacturer guidelines during installation.
