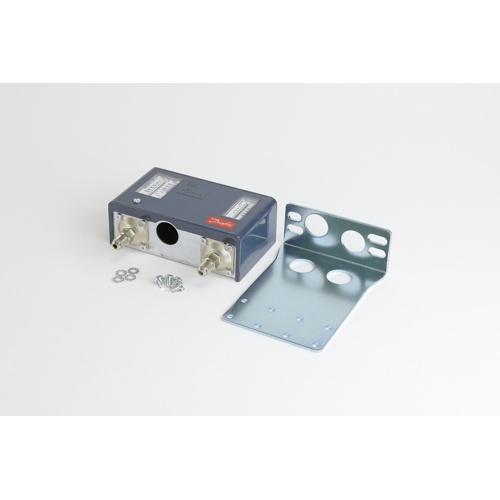

Danfoss 060-5249 6″ 108# Low 100/465# High SPDT Manual Reset Pressure Control

Description

Danfoss 060-5249 Pressure Control — SPDT Manual Reset

The Danfoss 060-5249 is a heavy-duty pressure control switch engineered for dependable system protection in commercial refrigeration and HVAC applications. Featuring a Single Pole Double Throw (SPDT) switching configuration and manual reset operation, this control is designed to safeguard compressors and refrigeration circuits against unsafe pressure conditions.

Key Features

• 6″ sensing element for accurate, responsive pressure detection
• Low pressure cut-out at 108 PSI for reliable low-side protection
• High pressure operating range of 100–465 PSI for broad system compatibility
• SPDT (Single Pole Double Throw) switching action supports both normally open and normally closed circuit configurations
• Manual Reset (MR) operation requires deliberate operator intervention before restart, enhancing system safety
• Robust Danfoss construction for long service life in demanding commercial environments

Application

The 060-5249 is well-suited for use as a high-pressure safety cutout or low-pressure control in refrigeration systems, commercial air conditioning equipment, and other HVAC applications requiring precise pressure switching with manual reset capability. The SPDT contact arrangement provides installation flexibility for a wide range of control circuit designs.

Product Specifications

• Brand: Danfoss
• SKU / Part Number: 060-5249
• Sensing Element Length: 6″
• Low Pressure Cut-Out: 108 PSI
• High Pressure Range: 100–465 PSI
• Switch Type: SPDT (Single Pole Double Throw)
• Reset Type: Manual Reset (MR)
