Description
Overview

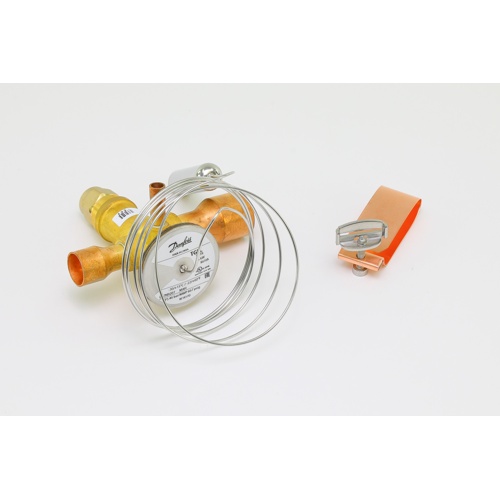

The Danfoss 067N9207 is a Type TGEL 10 Thermal Expansion Valve (TXV) engineered for R410A refrigerant systems with a capacity range up to 1–3 Tons. Featuring external equalization for superior superheat control across a wide range of operating conditions, this valve is an ideal choice for commercial and residential refrigeration and air conditioning applications where precise refrigerant metering is critical.
Key Features
- Refrigerant: R410A compatible
- Capacity: Up to 1–3 Ton
- Maximum Operating Pressure (MOP): 667 PSI
- Inlet Connection: 5/8″ ODF (Outlet Distributor Fitting)
- Outlet Connection: 7/8″ ODF (Outlet Distributor Fitting)
- Body Style: Straight Body configuration
- Capillary Tube Length: 60 inches for flexible bulb placement
- Equalization Type: Externally Equalized for accurate superheat control in systems with distributor pressure drop
- Orifice: Number 11 orifice for optimized flow capacity
- Includes bulb strap for secure sensing bulb mounting
- Valve Type: TGEL 10 series
Technical Specifications
- SKU: 067N9207
- Brand: Danfoss
- Series: TGEL 10
- Refrigerant: R410A
- Capacity: 1–3 Ton
- MOP: 667 PSI
- Inlet Size: 5/8″ ODF
- Outlet Size: 7/8″ ODF
- Body Orientation: Straight
- Capillary Tube Length: 60″
- Equalization: External
- Orifice Number: 11
- Includes: Bulb strap
Application
The Danfoss TGEL 10 series TXV is designed for use in split systems, package units, and commercial refrigeration equipment operating on R410A. The external equalizer port compensates for pressure drops across the evaporator distributor, ensuring consistent superheat and system efficiency. The 60″ capillary tube provides installation flexibility, allowing the sensing bulb to be positioned optimally on the suction line.
