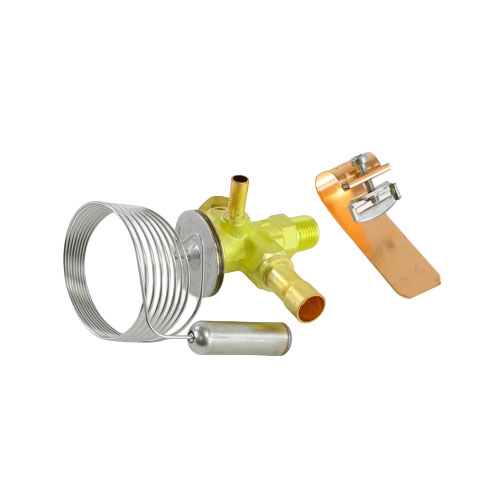

Danfoss 068Z3415 3/8″x1/2″ SWT Angle 5′ Cap TES 2 Thermostatic Expansion Valve

Description

The Danfoss 068Z3415 is a TES 2 Series thermostatic expansion valve (TXV) engineered for precise refrigerant flow control in commercial and residential refrigeration and air conditioning systems. Featuring an angle-body configuration with 3/8″ inlet and 1/2″ outlet sweat (SWT) connections, this valve delivers consistent superheat control to maximize system efficiency and protect the compressor from liquid slugging.

Key Features

• TES 2 Series thermostatic expansion valve for reliable refrigerant metering
• Angle-body design for flexible installation in tight or angled piping configurations
• 3/8″ inlet x 1/2″ outlet sweat (SWT) connections for secure, leak-free copper tubing joints
• 5-foot capillary tube for remote bulb placement and accurate sensing
• Maintains consistent superheat to protect compressor integrity and optimize system efficiency
• Compact, robust construction suitable for commercial and residential HVAC/R applications
• Danfoss-engineered precision for long service life and dependable performance

Product Specifications

• SKU: 068Z3415
• Brand: Danfoss
• Series: TES 2
• Valve Body Style: Angle
• Inlet Connection: 3/8″ Sweat (SWT)
• Outlet Connection: 1/2″ Sweat (SWT)
• Capillary Length: 5 feet
• Valve Type: Thermostatic Expansion Valve (TXV)

Application

The Danfoss TES 2 TXV is designed for use in a wide range of refrigeration and air conditioning systems where accurate superheat regulation is critical. The angle-body style simplifies installation where straight-through flow is not practical, and the sweat connections ensure a permanent, vibration-resistant joint. The 5-foot capillary provides ample reach for optimal bulb placement on the suction line, enabling precise temperature sensing and responsive valve modulation.
