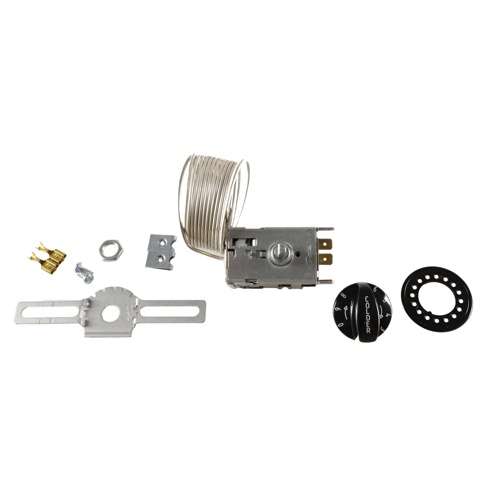

Danfoss 077Z7011 Refrigerator Thermostat, Constant Cut-in, 3-Position

Description

The Danfoss 077Z7011 is a precision refrigerator application thermostat engineered for constant cut-in operation, delivering consistent and reliable temperature control across three selectable positions. Designed for commercial and residential refrigeration systems, this thermostat maintains a fixed cut-in temperature of +41°F across all positions while offering adjustable cut-out points to suit a range of cold storage requirements.

Operation Overview

The constant cut-in design ensures the compressor always restarts at the same temperature (+41°F), providing stable and predictable refrigeration cycling. The three-position selector allows technicians and end users to fine-tune the cooling intensity to match the application’s specific needs.

Temperature Settings

• Warm Position: Cut-in +41°F / Cut-out +29.5°F
• Middle Position: Cut-in +41°F / Cut-out +23.5°F
• Cold Position: Cut-in +41°F / Cut-out +17°F

Key Features

• Constant cut-in operation mode for consistent compressor restart temperature
• Three selectable temperature positions: Warm, Middle, and Cold
• Designed specifically for refrigerator applications
• Reliable Danfoss engineering for long service life
• Suitable for commercial and residential refrigeration systems

Application

Ideal for OEM refrigerator builds, replacement installations, and service upgrades where precise, repeatable temperature control is required. The Danfoss 077Z7011 is a trusted solution for maintaining food-safe temperatures in refrigeration cabinets and cold storage units.
