Description

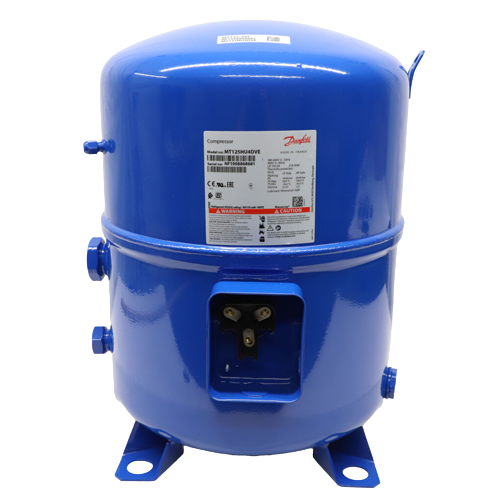

The Danfoss MT125-4VI is a heavy-duty reciprocating compressor engineered for demanding commercial refrigeration and air conditioning applications. Rated at 10 horsepower and powered by a 460V, 3-phase motor running at 3500 RPM, this 4-cylinder unit delivers 66,961 BTU/h of cooling capacity at 20°F evaporating temperature — making it a dependable choice for process cooling, walk-in refrigeration, and large-scale HVAC systems. Each unit ships complete with gaskets, tube sleeve adaptors, sightglass, terminal box cover, and all required mounting hardware for a straightforward installation.
Product Highlights
- High-output 4-cylinder reciprocating design for reliable, long-service-life performance
- 66,961 BTU/h capacity at 20°F evaporating temperature
- Optimized for R-22 refrigerant with broad application compatibility
- Robust 460V/3-phase motor suited for industrial and commercial power systems
- Includes gaskets, tube sleeve adaptors, sightglass, terminal box cover, and mounting hardware
Technical Specifications
- Brand: Danfoss
- Model: MT125HU4DVE
- Part Number (MPN): MT125-4VI
- Compressor Type: Reciprocating
- Cylinders: 4
- Voltage: 460V
- Phase: 3-Phase
- Frequency: 60 Hz
- Motor RPM: 3,500 RPM
- BTU/h Capacity @ 20°F Evap.: 66,961
- R-22 Capacity: 124,650 BTU/h
- R-502 Capacity: 34,080 BTU/h
- Refrigerant: R-22
- Suction Connection: 1-3/4″ ROT
- Discharge Connection: 1-1/4″ ROT
- Connection Size: 1-3/4″ x 1-1/8″
- Compressor Connection Type: ODF
- Application: Air Conditioning, Refrigeration, Process Cooling
- UPC: 5702428839907
