Description

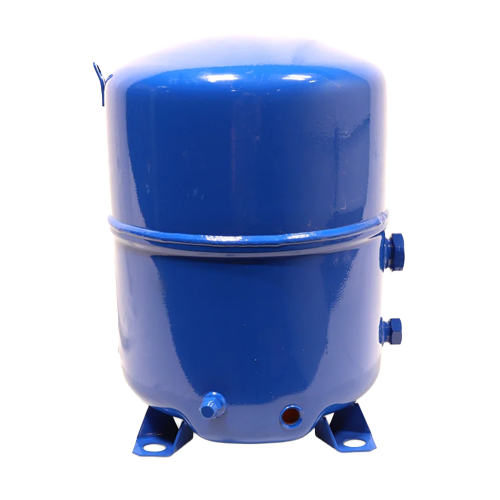

The Danfoss MTZ100-4VI (Model MTZ100HS4VE) is a heavy-duty reciprocating compressor engineered for demanding industrial refrigeration applications. Designed for broad refrigerant compatibility and flexible power configurations, it delivers reliable, high-capacity performance in a compact, integration-ready package.
Key Benefits
- High cooling capacity up to 63,963 BTU/hr with R134A, and 52,953 BTU/hr with R404A or R507A
- Compatible with multiple refrigerants — R404A, R407C, R134A, and R407F — for versatile system design
- Dual voltage support (380–400V/50Hz or 460V/60Hz) accommodates varied industrial power environments
- Compact, robust construction simplifies drop-in integration and reduces installation time
- Polyester oil compatible for long-term lubrication reliability
Connections & Fittings
- Suction: 1-3/4 inch Rotolock
- Discharge: 1-1/4 inch Rotolock
- Oil Equalization: 3/8 inch NPT
Technical Specifications
- Brand: Danfoss
- SKU / MPN: MTZ100-4VI
- Model: MTZ100HS4VE
- Horsepower: 8.5 HP
- Voltage: 380–400V (50Hz) / 460V (60Hz)
- Phase: 3-Phase
- Max Capacity: 63,963 BTU/hr (R134A) | 52,953 BTU/hr (R404A / R507A)
- Refrigerants Supported: R404A, R407C, R134A, R407F
- Lubricant: Polyester Oil
