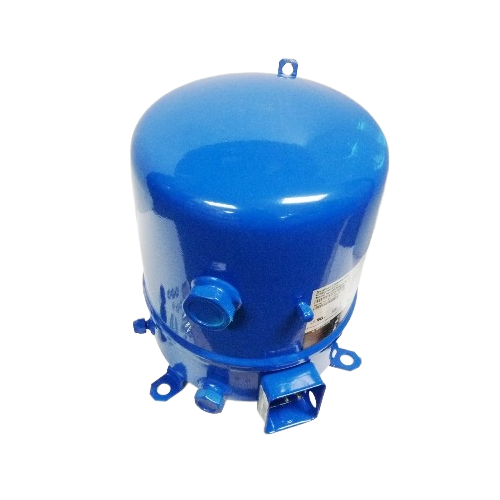

Danfoss MTZ64HM3AVE Scroll Compressor Overview
The Danfoss MTZ64-3VI (Model MTZ64HM3AVE) is a heavy-duty scroll compressor engineered for demanding commercial refrigeration and air conditioning applications. Delivering up to 44,404 BTU/hour with R134A refrigerant, this three-phase unit combines broad refrigerant compatibility with robust Rotolock connections — making it a reliable choice for new installations and system replacements alike.
Key Features
- Multi-refrigerant compatible: R404A, R407C, R134A, and R407F
- Polyester (POE) oil compatible for long-term lubrication reliability
- 200–230V, 60Hz, three-phase power supply
- 5.5HP motor output for high-capacity cooling performance
- 1-3/4″ Rotolock suction connection for secure, leak-free installation
- 1-1/4″ Rotolock discharge connection
- Rated for evaporator temperatures up to 45°F and condenser temperatures up to 130°F
Cooling Capacity
- Up to 44,404 BTU/hr with R134A refrigerant
- Up to 36,056 BTU/hr with R404A or R507A refrigerant
Technical Specifications
- Brand: Danfoss
- Model / MPN: MTZ64HM3AVE / MTZ64-3VI
- Voltage: 200–230V
- Frequency: 60Hz
- Phase: Three-Phase
- Horsepower: 5.5HP
- Suction Connection: 1-3/4″ Rotolock
- Discharge Connection: 1-1/4″ Rotolock
- Max Evaporator Temperature: 45°F
- Max Condenser Temperature: 130°F
- Compatible Refrigerants: R404A, R407C, R134A, R407F, R507A
- Lubricant: Polyester (POE) Oil
