Description

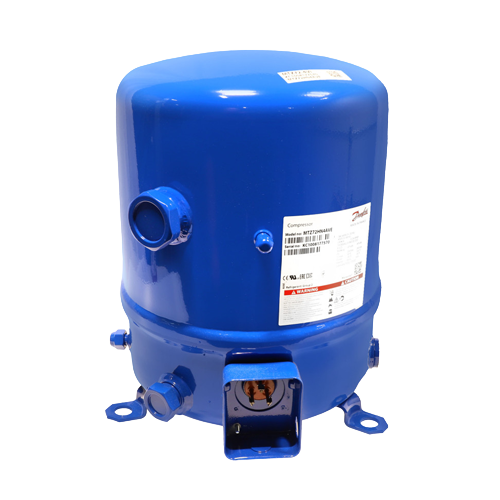

The Danfoss MTZ72-4VI is a heavy-duty reciprocating compressor engineered for dependable, high-capacity performance in commercial and industrial refrigeration applications. Designed to handle the demands of continuous-duty environments such as food processing facilities and cold storage warehouses, this compressor delivers exceptional efficiency while reducing long-term operational costs.
Compatible with a broad range of refrigerants and utilizing polyester oil lubrication, the MTZ72-4VI is a versatile solution built to perform reliably across diverse system configurations.
Product Highlights
- High-capacity cooling output of 50,000 BTU/HR for R134A and 40,894 BTU/HR for R404A/R507A
- Ideal for heavy-duty commercial and industrial refrigeration systems
- Enhances system efficiency to lower operating costs without sacrificing performance
- Compatible with multiple refrigerants: R404A, R407C, R134A, and R407F
- Polyester oil lubrication for long-term reliability
Technical Specifications
- Brand: Danfoss
- MPN: MTZ72-4VI
- Horsepower: 6 HP
- Phase: Three-phase
- Power: 380–400V / 50Hz or 460V / 60Hz
- Capacity: 50,000 BTU/HR (R134A) | 40,894 BTU/HR (R404A / R507A)
- Compatible Refrigerants: R404A, R407C, R134A, R407F
- Lubricant: Polyester oil
Connections
- 1-3/4 in. Rotolock suction connection
- 1-1/4 in. Rotolock discharge connection
- 3/8 in. NPT oil equalization port
