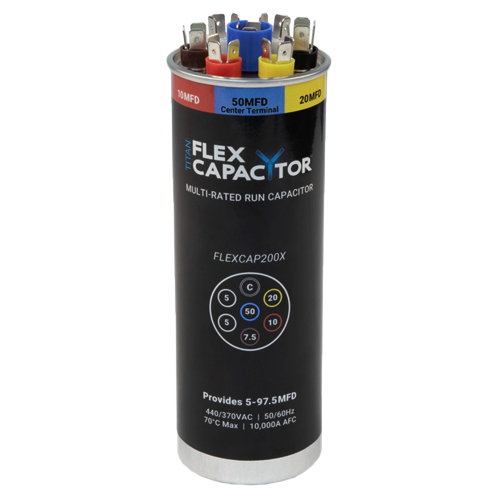

The DiversiTech Titan FLEXCAP200X by Packard is the largest capacity option in the Titan Flex Capacitor lineup, giving contractors a single multi-rated run capacitor capable of replacing hundreds of single or dual capacitor rating combinations. Rated for 440/370 VAC at 50/60 Hz, the FLEXCAP200X provides the highest max rating in the line at 97.5 MFD, with available microfarad combinations of 50, 20, 10, 7.5, 5, and 5 MFD — well suited for larger HVAC equipment or applications requiring higher capacitance coverage. Like the rest of the Titan Flex Capacitor family, the FLEXCAP200X is 60,000-hour rated and backed by a 5-year warranty, with an internal interrupter for added equipment protection. Wire jumpers, a mounting zip tie, and screw are included for straightforward field installation, helping techs consolidate multiple capacitor SKUs into one flexible part for bigger jobs.
Features:
- Highest Capacity in the Line – Max 97.5 MFD with 50, 20, 10, 7.5, 5, and 5 MFD combinations to replace hundreds of single/dual capacitor ratings
- 440/370 VAC, 50/60 Hz Rated – Fits standard residential and light commercial HVAC run capacitor applications
- 60,000-Hour Rated, 5-Year Warranty – Built for long service life with manufacturer backing
- Internal Interrupter – Provides added equipment protection compared to standard capacitors
- Complete Install Kit Included – Wire jumpers, mounting zip tie, and screw included for fast field installation
