Description

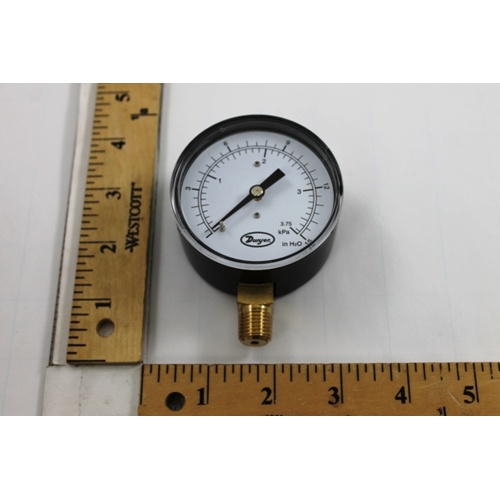

The Dwyer LPG4-D8122N is a rugged, reliable low pressure gage engineered for demanding HVAC and industrial applications where accurate measurement of low-range gas or air pressure is critical. With a 0 to 15″ W.C. (water column) measurement range and ±1.5% full-scale accuracy, this gage delivers dependable readings in a compact, field-ready package.
Constructed with brass and beryllium copper wetted materials, the LPG4-D8122N resists corrosion and ensures long-term durability in contact with process media. The drawn steel housing features a protective black finish, and the NEMA 3 enclosure rating provides resistance to falling dirt, rain, sleet, snow, and windblown dust — making it well suited for both indoor and outdoor installations.
The 2-1/2″ dial face offers a clear, easy-to-read display, while the 1/4″ Male NPT connection simplifies installation into standard piping systems.
Key Features
- Measurement Range: 0 to 15″ W.C. (water column)
- Accuracy: ±1.5% Full Scale (FS)
- Wetted Materials: Brass and Beryllium Copper
- Housing: Drawn steel with black finish
- Dial Face Size: 2-1/2″
- Process Connection: 1/4″ Male NPT
- Enclosure Rating: NEMA 3
Applications
- HVAC air handling and duct pressure monitoring
- Gas pressure measurement in heating systems
- Low-pressure process monitoring in light industrial environments
- Filter differential pressure indication
Why Choose the Dwyer LPG4-D8122N?
Dwyer Instruments is a trusted name in pressure measurement instrumentation. The LPG4-D8122N combines proven wetted material selection, a weather-resistant NEMA 3 enclosure, and a straightforward NPT connection to deliver a gage that installs quickly and performs reliably over the long haul. Whether you’re monitoring gas supply pressure, air system pressure, or filter loading, this gage provides the accuracy and durability your application demands.
