Description

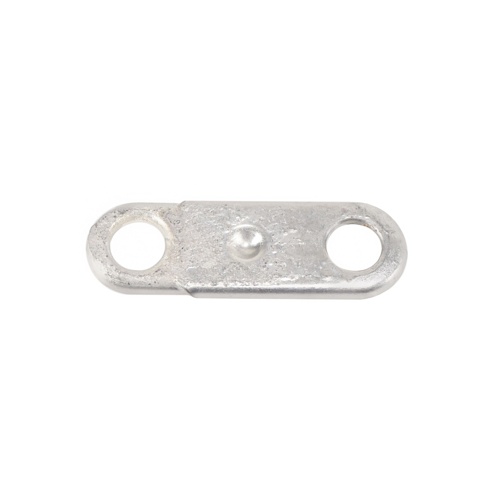

Elsie Manufacturing A212 Fusible Link Overview
The Elsie Manufacturing A212 is a 212°F fusible link designed for use in fire and smoke damper applications where reliable, temperature-activated release is essential. When ambient temperatures reach the rated 212°F threshold, the link melts and separates, allowing the connected damper to close and restrict the spread of fire and smoke through ductwork systems.
Key Dimensions
- Overall Length: 2.625″
- Width: 0.875″
- Center-to-Center Distance: 1.750″
Features & Benefits
- Rated at 212°F (100°C) for precise, dependable activation
- Compact, consistent dimensions for straightforward installation and replacement
- Designed for use with fire and smoke dampers in HVAC duct systems
- Provides passive fire protection by enabling automatic damper closure upon heat detection
- Manufactured by Elsie Manufacturing, a trusted name in fusible link components
Typical Applications
- Commercial and industrial HVAC ductwork fire dampers
- Smoke control systems requiring automatic closure
- Replacement fusible links in existing fire damper assemblies
