Description

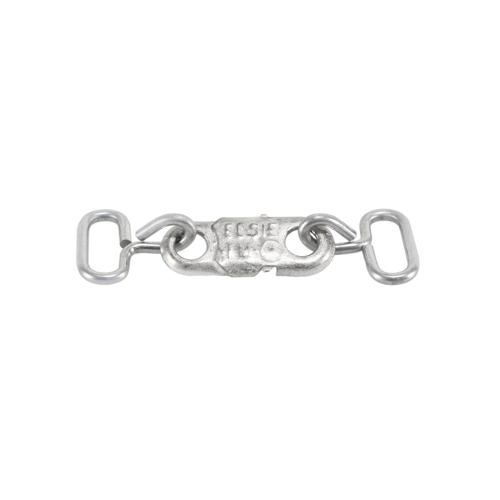

The Elsie Manufacturing B165-SHORT HOOK is a 165°F-rated fusible link designed for use in fire and smoke damper applications where reliable, heat-activated release is critical. When ambient temperatures reach the rated threshold, the link melts and separates, allowing the damper to close and restrict the spread of fire and smoke through ductwork.
Key Specifications
- Rated Temperature: 165°F
- Hook Style: Short Hooks
- Overall Length: 1.5″
- Width: .563″
- Between Centers: .938″
Features & Benefits
- Precision-engineered for consistent, reliable activation at 165°F
- Short hook configuration for compact installation in tight damper assemblies
- Manufactured by Elsie Manufacturing, a trusted name in fusible link products
- Designed to hold damper blades open under normal conditions and release upon heat exposure
- Compact dimensions make it suitable for a wide range of fire damper and duct applications
Application
Fusible links are a critical component in passive fire protection systems. The B165-SHORT HOOK is ideal for HVAC contractors, mechanical engineers, and building maintenance professionals who need a dependable, code-compliant solution for fire damper installations. The 165°F rating is commonly specified for standard duct environments where ambient temperatures remain well below the activation point during normal operation.
