Description

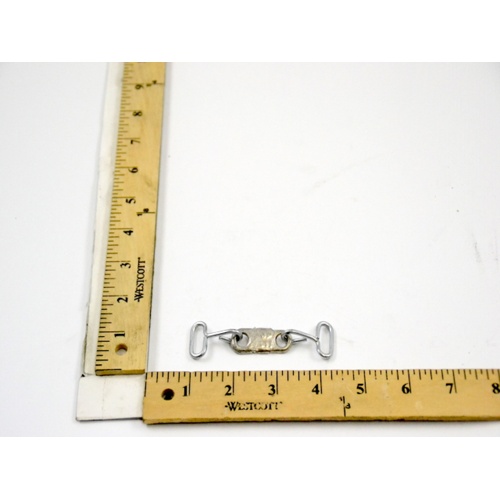

The Elsie Manufacturing B212-LONG HOOK is a 212°F-rated fusible link designed for use in fire and smoke damper applications where dependable, heat-activated release is critical. When ambient temperatures reach the 212°F threshold, the link melts and separates, allowing the damper to close and restrict the spread of fire and smoke through ductwork.
Featuring long hooks for easy installation and secure attachment, this fusible link is a straightforward, code-compliant solution for commercial and residential HVAC fire protection systems.
Key Specifications
- Temperature Rating: 212°F
- Hook Style: Long Hooks
- Overall Length: 1.5″
- Width: .563″
- Distance Between Centers: .938″
Features & Benefits
- Precise 212°F activation temperature for reliable fire damper release
- Long hook design simplifies installation and ensures a secure hold
- Compact, low-profile dimensions fit standard damper linkage hardware
- Manufactured by Elsie Manufacturing, a trusted name in fusible link products
- Suitable for fire and smoke damper systems in commercial and residential HVAC applications
Applications
- Fire dampers in HVAC ductwork
- Smoke control damper systems
- Replacement fusible links for existing damper assemblies
