Description

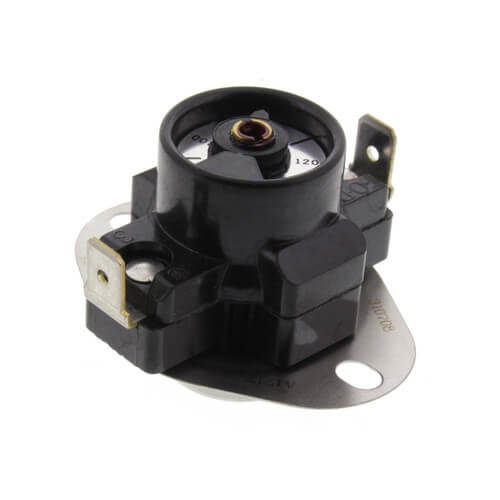

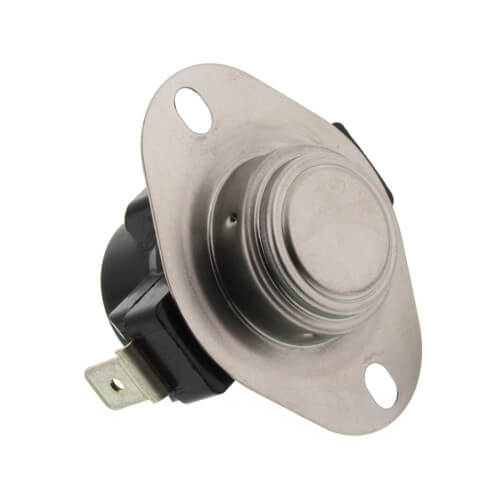

Emerson 3L05-1 Adjustable Snap Disc Fan Control is a 3/4in Snap Disc Fan Control with a temperature range of 90F to 130F Degrees.
This snap-disc thermostat allows you to set the temperature set point to match your specific needs, reducing inventory while providing coverage for a range of temperature applications.
The Emerson 3L05-1 has 1/4in quick connect terminals and a 20F Degree Differential.
Features
- Fan Control Application
- 90F to 130F Degree Temperature Range
- 20F Degree Differential
- Close on Rise Switch
- Quick-Connect Connection Type
- Adjustable Temperature
Motor
- Full Load: 14A @ 120VAC
- Locked Rotor: 72A @ 120VAC
- Full Load: 10A @ 240VAC
- Locked Rotor: 60A @ 240VAC
Pilot Duty Rating
- 125 VA @ 240 Vac
- 125 VA @ 120 Vac
