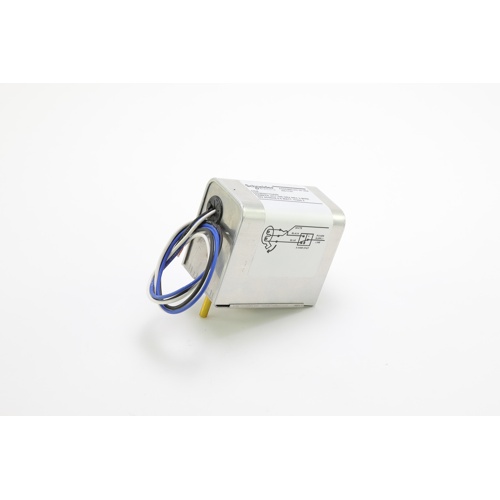

Schneider Electric (Erie) 0453H0074GA00 Two Position Damper Actuator Overview
The Schneider Electric (Erie) 0453H0074GA00 is a medium-duty, direct-drive damper actuator engineered for reliable two-position control in commercial HVAC air distribution systems. Designed to operate on a 24VAC power supply, this actuator delivers consistent, repeatable performance for damper positioning applications where precise airflow management is essential.
Key Features
- 24VAC operating voltage for compatibility with standard HVAC control systems
- 55 in-oz torque rating — suitable for medium-duty damper applications
- Direct drive design eliminates the need for additional linkage hardware, simplifying installation
- Counter-clockwise (CCW) rotation for correct damper blade positioning
- Spring return mechanism ensures the damper returns to its fail-safe position upon power loss
- Two-position (open/close) control for straightforward on/off damper operation
- Medium-duty construction for dependable long-term performance in commercial environments
Application
The Erie 0453H0074GA00 is ideal for use in commercial HVAC systems requiring two-position damper control, including air handling units, VAV systems, economizers, and ventilation dampers. The spring return function provides a built-in fail-safe, automatically driving the damper to its default position during a power interruption — a critical safety feature for many building automation and ventilation applications.
Product Specifications
- SKU / Part Number: 0453H0074GA00
- Brand: Schneider Electric (Erie)
- Supply Voltage: 24VAC
- Torque Rating: 55 in-oz
- Drive Type: Direct Drive
- Rotation Direction: Counter-Clockwise (CCW)
- Return Type: Spring Return
- Control Type: Two Position
- Duty Rating: Medium Duty
Why Choose Jackson Systems?
Jackson Systems stocks a comprehensive selection of Schneider Electric (Erie) damper actuators and HVAC controls. Order the 0453H0074GA00 with confidence, backed by our knowledgeable support team and fast shipping to keep your projects on schedule.
