Description

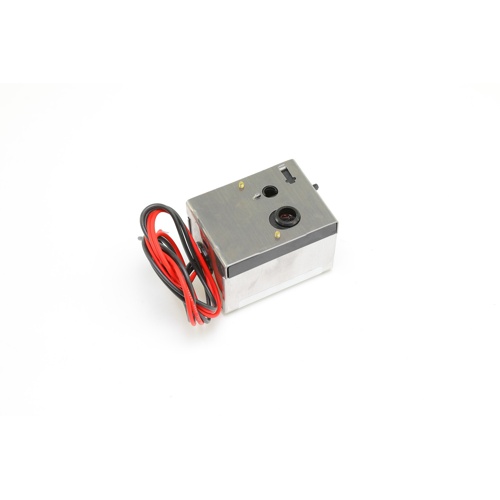

The Schneider Electric (Erie) AG23A02A is a two-position, spring return valve actuator engineered for reliable on/off control in commercial and light industrial HVAC applications. Designed to operate on a 24VAC power supply, this actuator delivers dependable normally open (NO) fail-safe performance — returning to the open position upon loss of power thanks to its integrated spring return mechanism. The 18-inch wire leads provide flexible installation reach, while the built-in end switch enables position feedback to your control system, supporting interlock and sequencing functions.
Key Features
- Two-position (on/off) control for straightforward zone valve and damper applications
- Spring return fail-safe action — returns to normally open position on power loss
- 24VAC operating voltage for compatibility with standard HVAC control systems
- Normally open (NO) configuration for fail-safe open operation
- 18-inch wire leads for flexible field wiring and installation
- Integrated end switch provides position feedback for system interlocking and sequencing
- Compact motor/actuator design for easy mounting in tight mechanical spaces
Specifications
- SKU: AG23A02A
- Brand: Schneider Electric (Erie)
- Control Type: Two Position (On/Off)
- Operating Voltage: 24VAC
- Fail-Safe Action: Spring Return
- Normal Position: Normally Open (NO)
- Wire Lead Length: 18 inches
- End Switch: Included
Applications
- Commercial HVAC hydronic zone valve control
- Fan coil unit valve actuation
- Air handling unit damper actuation
- Building automation and energy management systems
- Two-pipe and four-pipe hydronic systems
