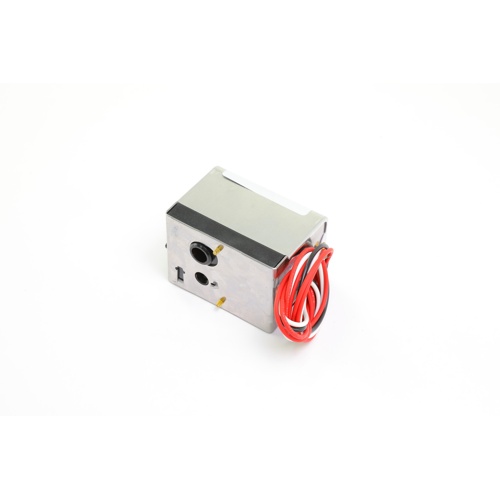

Schneider Electric (Erie) AG23B02A Actuator Overview
The Schneider Electric (Erie) AG23B02A is a two-position, spring return valve or damper actuator engineered for dependable normally open operation in commercial and light industrial HVAC applications. Designed to operate on 120VAC power, this actuator delivers consistent, fail-safe performance — automatically returning to the normally open position upon loss of power thanks to its integrated spring return mechanism.
Key Features
- Operating Voltage: 120VAC
- Control Action: Two-position (on/off)
- Fail-Safe Operation: Spring return to normally open position
- Integrated end switch for position feedback and system interlock capability
- 18-inch wire leads for flexible wiring and installation convenience
- Compact actuator design suitable for valve or damper applications
- Manufactured by Schneider Electric under the trusted Erie product line
Application
The AG23B02A is ideal for use in hydronic heating and cooling systems, zone valve control, and damper actuation where a reliable normally open, spring return fail-safe position is required. The built-in end switch allows for easy integration with control panels, fan interlock circuits, and building automation systems.
Why Choose the Erie AG23B02A?
Erie actuators are a trusted name in HVAC controls, known for their robust construction and long service life. The AG23B02A combines straightforward two-position control with a spring return safety feature, ensuring your system defaults to a safe state during a power interruption. The 18″ pre-wired leads simplify installation and reduce field wiring time.
Specifications
- SKU: AG23B02A
- Brand: Schneider Electric (Erie)
- Voltage: 120VAC
- Control Type: Two-Position
- Fail-Safe: Spring Return
- Normal Position: Normally Open
- Wire Leads: 18 inches
- End Switch: Included
