Description

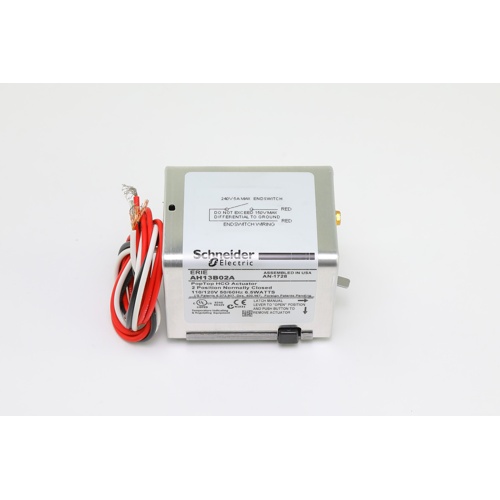

The Schneider Electric (Erie) AH13B02A is a high-performance valve actuator engineered for reliable two-position control in commercial and industrial HVAC hydronic systems. Designed to operate on 120VAC power, this actuator delivers dependable spring-return action to the normally closed position, ensuring fail-safe operation during power interruptions.
Key Features
- 120VAC operating voltage for compatibility with standard commercial control circuits
- Two-position (open/close) control for straightforward on/off valve actuation
- Spring return mechanism automatically returns valve to the normally closed (NC) position upon loss of power — providing built-in fail-safe protection
- High close-off rating for positive shutoff performance under elevated system pressures
- 18-inch wire leads for flexible installation and easy field wiring
- Integrated end switch provides position feedback to building automation or control systems
Applications
- Hydronic heating and cooling systems
- Fan coil unit valve control
- Air handling unit coil control
- Zone valve actuation in commercial HVAC systems
- Building automation and energy management systems
Product Specifications
- SKU: AH13B02A
- Brand: Schneider Electric (Erie)
- Supply Voltage: 120VAC
- Control Type: Two-Position
- Fail-Safe Action: Spring Return, Normally Closed
- Close-Off: High Close-Off
- Wire Leads: 18 inches
- End Switch: Included
The Erie AH13B02A is a trusted solution from Schneider Electric’s Erie Controls line, known for durability and precision in valve actuation. The included end switch makes it easy to integrate with DDC controllers and building management systems for status monitoring and sequencing. Order the AH13B02A from Jackson Systems for fast shipping and expert support.
