Description

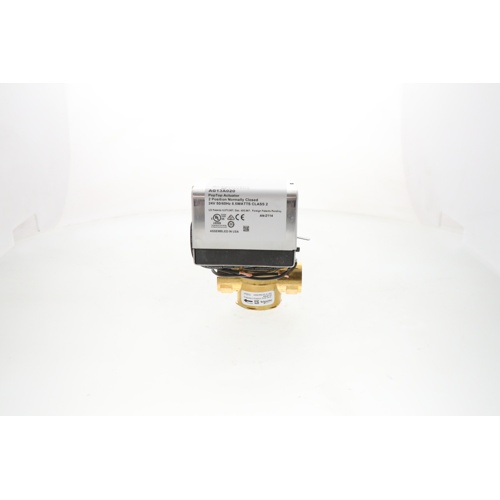

The Schneider Electric (Erie) VT2312G13A020 is a two-way, normally closed zone valve assembly engineered for precise flow control in hydronic heating and cooling systems. Featuring a spring-return, two-position actuator, this valve automatically returns to the closed position upon loss of power, providing a built-in fail-safe for system protection.
Key Features
- Two-way, normally closed (NC) valve configuration
- 3/4″ sweat (solder) end connections for easy copper pipe installation
- 2.5 Cv flow coefficient for accurate flow capacity sizing
- 24VAC operating voltage — compatible with standard zone control systems
- Spring-return actuator ensures fail-safe closed position on power loss
- Two-position (open/close) operation for straightforward zone control
- Compact valve and actuator assembly — factory assembled and ready to install
Applications
- Hydronic heating and cooling zone control
- Fan coil unit supply or return piping
- Radiant floor heating zone isolation
- Chilled water and hot water distribution systems
- Residential and light commercial HVAC zoning
Specifications
- SKU / Part Number: VT2312G13A020
- Brand: Schneider Electric (Erie)
- Valve Type: Two-Way, Normally Closed
- Connection Type: Sweat (Solder), 3/4″
- Flow Coefficient (Cv): 2.5
- Control Voltage: 24VAC
- Actuator Type: Spring Return
- Operation: Two-Position (On/Off)
The Erie VT2312G13A020 is a trusted solution for HVAC contractors and engineers who demand reliable, code-compliant zone valve performance. Its sweat connection simplifies field installation on copper piping systems, while the 24VAC two-position actuator integrates seamlessly with virtually all residential and commercial zone control panels.
