Description

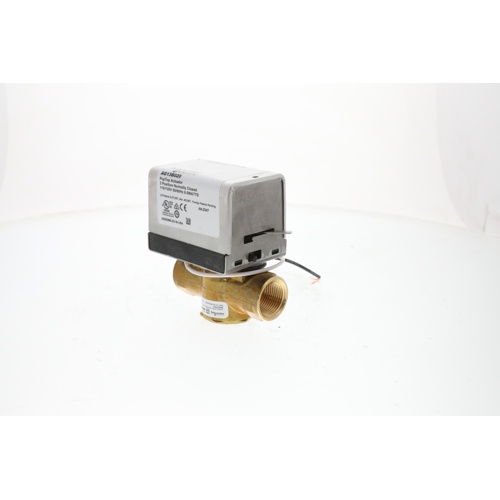

The Schneider Electric (Erie) VT2322G13B020 is a two-way, normally closed, spring-return zone valve assembly engineered for precise two-position flow control in hydronic heating and cooling systems. Featuring a 3/4″ NPT connection, a 2.5 Cv flow coefficient, and 120VAC operation, this valve delivers dependable on/off zone isolation for residential and light commercial hydronic applications.
Key Features
- Two-way, normally closed (NC) valve configuration — closes automatically on power loss for fail-safe operation
- Spring-return actuator ensures the valve returns to the closed position when de-energized
- 3/4″ NPT pipe connections for straightforward installation into standard hydronic piping
- 2.5 Cv flow coefficient provides optimized flow capacity for zone control applications
- 120VAC operating voltage compatible with standard residential and commercial control systems
- Two-position (open/close) operation for simple, reliable zone switching
- Compact valve and actuator assembly — factory-assembled for plug-and-play installation
Product Specifications
- SKU: VT2322G13B020
- Brand: Schneider Electric (Erie)
- Valve Type: Two-Way, Normally Closed
- Connection Size: 3/4″ NPT
- Flow Coefficient (Cv): 2.5
- Supply Voltage: 120VAC
- Actuator Type: Spring Return
- Control Action: Two Position (On/Off)
Typical Applications
- Hydronic heating and chilled water zone control
- Fan coil unit supply or return isolation
- Residential and light commercial zoning systems
- Baseboard and radiant heating zone valves
The Erie VT2322G13B020 is a trusted solution from Schneider Electric’s Erie Controls line, known for long service life and consistent performance in demanding hydronic environments. The normally closed, spring-return design provides an inherent safety feature — ensuring zones are closed and flow is stopped whenever the valve is not actively powered, protecting equipment and preventing unintended heating or cooling.
