Description
Overview

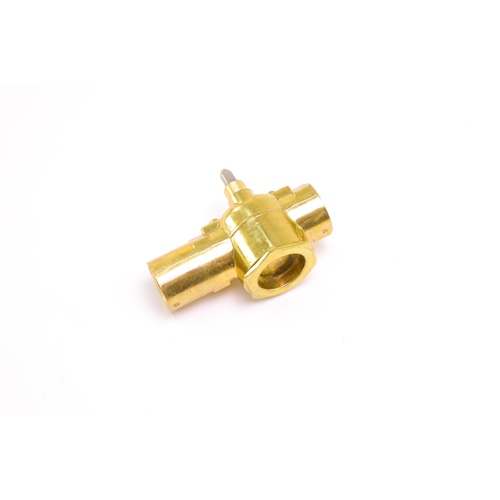

The Schneider Electric (Erie) VT2342 is a two-position, two-way zone valve body engineered for reliable hydronic zone control in residential and light commercial heating and cooling systems. Featuring a 3/4″ inverted flare connection design, this valve body is an ideal retrofit replacement, allowing straightforward installation without the need to replace existing flare fittings in the system.
Key Features
- 3/4″ inverted flare connections — designed for retrofit applications
- Two-way, two-position valve body for precise on/off zone control
- 2.5 Cv flow coefficient for optimized hydronic system performance
- Compatible with Erie actuators for a complete zone valve assembly
- Durable construction built to withstand demanding hydronic system conditions
- Drop-in retrofit design minimizes installation time and labor costs
Product Specifications
- Brand: Schneider Electric (Erie)
- SKU: VT2342
- Connection Size: 3/4″
- Connection Type: Inverted Flare (Retrofit)
- Valve Configuration: Two-Way
- Operation: Two-Position (Open/Close)
- Flow Coefficient (Cv): 2.5
- Product Type: Zone Valve Body
Application
The VT2342 valve body is designed for use in hydronic zoning systems where individual zones require independent temperature control. Its two-position operation ensures each zone receives full flow when open and complete shutoff when closed, maximizing system efficiency. The inverted flare retrofit configuration makes it an excellent choice for service technicians replacing worn or failed valve bodies without disturbing existing piping connections.
