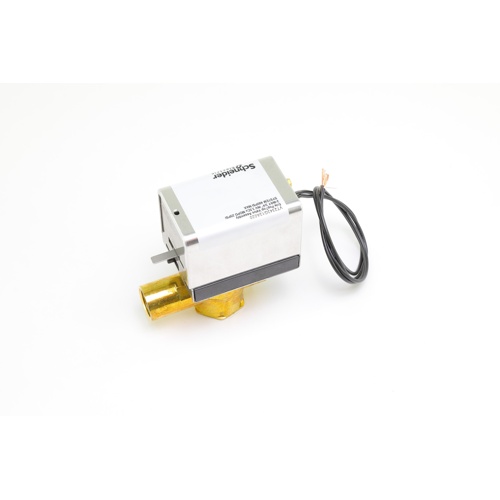

Schneider Electric (Erie) VT2343G13A020 Two-Way Normally Closed Zone Valve Overview
The Schneider Electric (Erie) VT2343G13A020 is a two-way, normally closed zone valve assembly engineered for reliable hydronic zone control in residential and light commercial HVAC systems. Featuring an inverted flare retrofit connection, this valve is designed as a direct drop-in replacement for existing Erie zone valve installations, minimizing labor time and simplifying upgrades.
Key Features
- Two-way, normally closed (NC) valve configuration — closes automatically on power loss for fail-safe operation
- 3/4″ inverted flare connection — retrofit-ready for easy replacement of existing Erie zone valves
- 3.5 Cv flow coefficient for balanced hydronic system performance
- 24VAC operating voltage — compatible with standard zone control panels and thermostats
- Spring return actuator — ensures valve returns to the closed (safe) position upon loss of power
- Two-position (open/close) operation for straightforward zone control
- Valve and actuator sold as a complete pre-assembled unit for quick installation
Application
The VT2343G13A020 is ideal for zoning hot water heating systems, fan coil units, and other hydronic applications where dependable two-position flow control is required. The inverted flare retrofit design makes it the preferred choice when replacing aging Erie zone valves without modifying existing piping.
Specifications
- Brand: Schneider Electric (Erie)
- SKU / Part Number: VT2343G13A020
- Valve Type: Two-Way, Normally Closed
- Connection Size: 3/4″
- Connection Type: Inverted Flare (Retrofit)
- Flow Coefficient (Cv): 3.5
- Supply Voltage: 24VAC
- Actuator Type: Spring Return
- Operation: Two-Position (Open/Closed)
- Assembly: Valve and Actuator Pre-Assembled
