Description

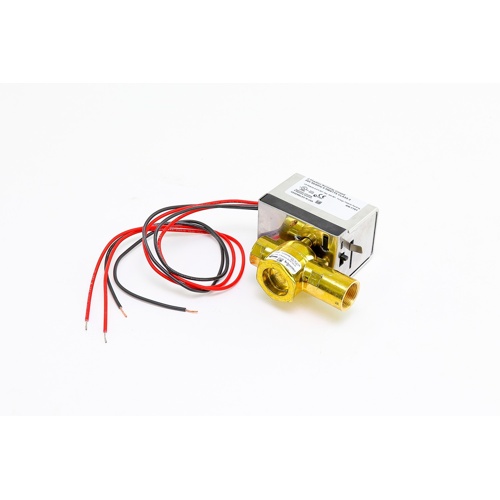

The Schneider Electric (Erie) VT2343G13A02A is a high-quality two-way, normally closed zone valve assembly engineered for reliable hydronic zone control in residential and light commercial HVAC systems. Designed as an inverted flare retrofit solution, this valve simplifies replacement installations without the need for soldering or pipe modifications.
Key Features
- Two-way, normally closed (NC) valve configuration ensures system safety — valve closes on power loss
- Spring return actuator provides automatic fail-safe closure when de-energized
- Built-in end switch signals the system controller or circulator pump upon full valve opening
- Inverted flare connections for easy retrofit installation — no soldering required
- Two-position (open/close) operation for straightforward zone control
- 3/4″ valve body size suits standard residential and light commercial hydronic piping
- 3.5 Cv flow coefficient delivers efficient flow performance for typical zone loads
- 24VAC operating voltage compatible with standard zone control boards and thermostats
Specifications
- SKU: VT2343G13A02A
- Brand: Schneider Electric (Erie)
- Valve Type: Two-Way, Normally Closed
- Valve Size: 3/4″
- Connection Type: Inverted Flare (Retrofit)
- Flow Coefficient (Cv): 3.5
- Operating Voltage: 24VAC
- Actuator Type: Spring Return
- Operation: Two Position (Open/Close)
- End Switch: Included
Applications
- Hydronic heating zone control
- Hot water baseboard and radiant floor heating systems
- Fan coil unit water flow control
- Retrofit replacement for existing Erie-style zone valves
- Residential and light commercial HVAC zoning
The Erie VT2343G13A02A is the trusted choice for HVAC professionals seeking a dependable, code-compliant zone valve solution. Its spring return, normally closed design ensures system protection during power interruptions, while the integrated end switch enables seamless coordination with zone panels and circulators.
