Description

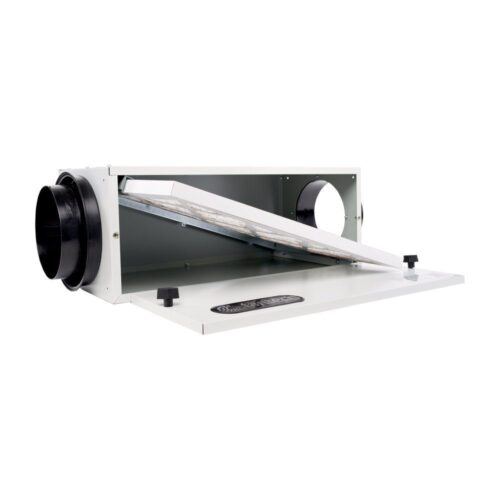

The Fantech FB6 is an inline filter boxs that is installed in the ductowrk after HRV or inline fan and provides more filtration for your indoor air quality systems.
Specifications
- Cabinet
- 24 gauge galvanized pre-painted steel corrosion resistant.
- 10" (250mm) depth x 8" (200m) height x 20-1/2" (525mm) length
- 6" (150mm) diameter plastic duct connections
- Neoprene door seal
- Access door removed with thumb screws
- Filter
- Pleated, non-washable
- 10"x20"x1" (nominal)
- Exact dimensions : 9-1/2" x 19-1/2" x 3/4"
- 240 x 495 x 19 mm)
- Rated MERV13 (Arrestance of >98% based on Standard 52.1
Maintenance
Replace your filter every three (3) months. Adjust your maintenance schedule based on how dirty the filter is when you replace it. If the inside of the cabinet is dirty, wipe with a clean, damp cloth.
