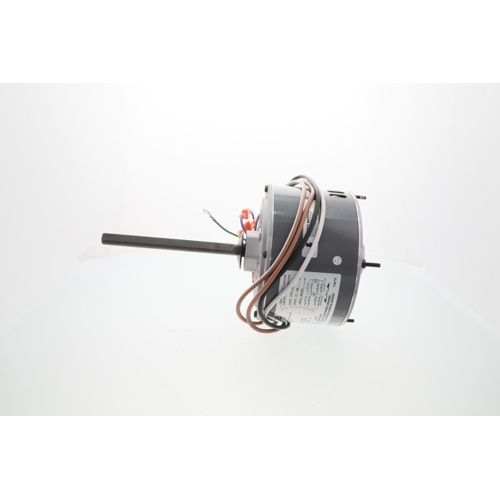

Fasco D7749 — 1/4 HP 2-Speed Replacement Motor
The Fasco D7749 is a dependable replacement motor engineered for HVAC applications requiring precise airflow control and reliable continuous-duty operation. With a 2-speed configuration, this motor gives technicians the flexibility to match fan performance to system demand, making it a go-to solution for blower and fan motor replacements in residential and light commercial equipment.
Key Specifications
- Horsepower: 1/4 HP
- Voltage: 208–230V
- Speed: 1075 RPM
- Number of Speeds: 2
- Brand: Fasco
- SKU: D7749
Features & Benefits
- Two-speed operation allows flexible airflow matching for heating and cooling modes
- 1075 RPM motor speed suited for quiet, efficient blower performance
- 208–230V rating compatible with standard residential and commercial HVAC equipment
- Built to Fasco’s quality standards for long service life and dependable replacement performance
- Ideal for use as a direct replacement in air handlers, furnaces, and fan coil units
Application
The Fasco D7749 is designed for use in HVAC blower and fan motor applications where a 1/4 HP, 2-speed, 208–230V motor is required. It is well-suited for replacement in air handlers, furnaces, and other forced-air systems. Always verify mounting configuration, shaft size, and rotation direction against the original motor before installation.
