Description

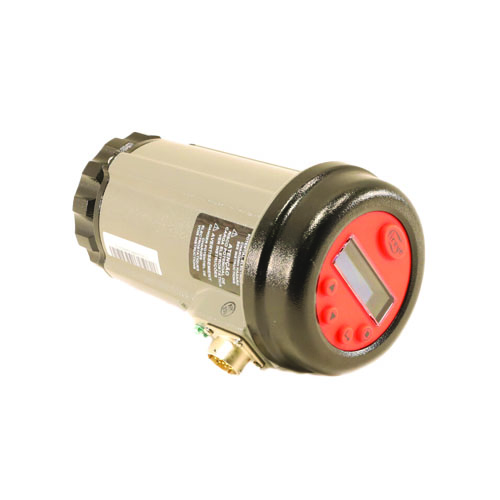

The Fireye 95UVS4-1WINC is a microprocessor-based ultraviolet (UV) flame scanner from the InSight Series 4, engineered for precise and reliable flame detection in industrial burner management and combustion control applications. By integrating flame detection, amplification, and safety relay logic into a single compact unit, it eliminates the need for external flame amplifiers — simplifying installation and reducing system complexity.
Using solid-state UV sensing technology, the 95UVS4-1WINC accurately detects flame presence while actively discriminating between true flame signals and background radiation. Electronic self-checking removes the need for a mechanical shutter, improving reliability and reducing maintenance. Adjustable flame relay ON/OFF thresholds and selectable modulation frequencies allow the scanner to be optimized for a wide range of fuels and firing conditions.
A built-in two-line display with keypad provides on-site configuration, diagnostics, and real-time monitoring without additional tools or software. Dual 4–20 mA analog outputs deliver continuous signal feedback for seamless integration into building automation and burner management systems. Housed in a rugged NEMA-rated enclosure, this scanner is well-suited for boilers, furnaces, and process heating systems where safety and operational reliability are paramount.
Key Features
- Solid-state UV flame detection with advanced signal discrimination technology
- Integrated flame detection, amplification, and safety relay in one compact unit
- Electronic self-checking operation — no mechanical shutter required
- Adjustable flame relay ON/OFF thresholds and sensor gain for precise control
- Multiple selectable modulation frequencies for diverse combustion setups
- Dual 4–20 mA analog output signals for monitoring and control integration
- Built-in 2-line display with keypad for on-site configuration and diagnostics
- Compatible with Fireye InSight and modern burner management systems
- Rugged NEMA-rated enclosure designed for harsh industrial environments
Common Applications
- Industrial boilers and steam generators
- Furnaces and process heating systems
- Combustion control and burner management systems
- Applications requiring high-safety flame monitoring with continuous analog feedback
