Description
Overview

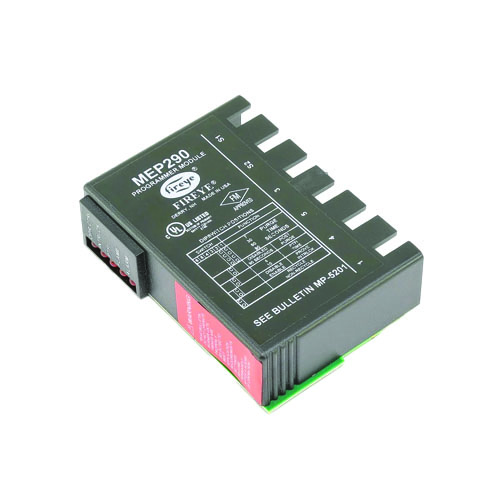

The Fireye MEP290 is a plug-in program module engineered for use with Fireye MicroM flame safeguard systems. Designed for demanding industrial and commercial combustion applications, it delivers precise burner sequencing and reliable flame monitoring to keep gas and oil-fired systems operating safely and efficiently.
Adjustable Post Purge Cycle
A standout feature of the MEP290 is its field-adjustable post purge timer, ranging from 0 to 90 seconds. This allows technicians to tailor the purge duration to the specific combustion system, ensuring residual combustion gases are fully cleared from the heat exchanger and flue after each shutdown — reducing the risk of hazardous gas accumulation and improving overall system safety.
Key Features
- Plug-in module design for easy installation and replacement in Fireye MicroM systems
- Adjustable post purge cycle: 0 to 90 seconds
- Manages complete burner sequencing: prepurge, ignition trial, flame monitoring, and post purge
- Automatic safety lockout on flame failure or fault detection
- Compatible with gas-fired and oil-fired burner systems
- Built for commercial and industrial combustion control applications
Applications
The MEP290 is suited for commercial and industrial boilers, burners, and combustion systems requiring dependable flame safeguard sequencing with configurable post purge capability.
