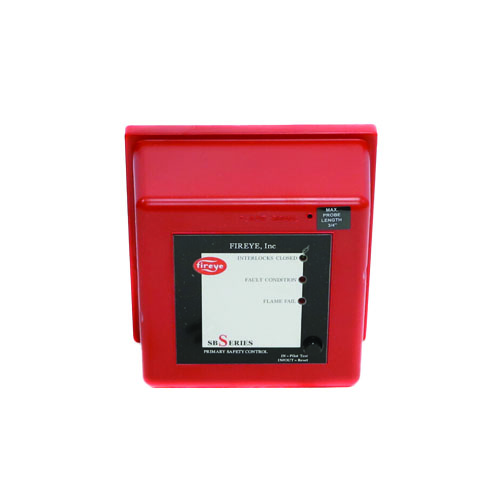

Fireye SB560223AA Flame Safeguard & Burner Management Control
The Fireye SB560223AA is a professional-grade SB Series flame safeguard and burner management control engineered for safe sequencing and continuous flame supervision in industrial combustion systems. Operating on 120 VAC, it employs flame rod (flame rectification) detection technology to reliably verify burner flame presence in gas- and oil-fired applications including boilers, furnaces, and process heaters.
Built-In Purge & Trial-for-Ignition (TFI)
This model features an integrated purge sequence that clears the combustion chamber with fresh airflow prior to ignition, ensuring safe startup conditions every time. A selectable 5 or 10 second trial-for-ignition (TFI) timer accommodates pilot or main flame establishment to match your specific system requirements.
Advanced Control & Safety Logic
Internal microprocessor logic manages the complete ignition sequence — from pre-purge through flame proving, safety interlock monitoring, and automatic safety lockout in the event of a fault. LED status indicators provide at-a-glance diagnostics, simplifying troubleshooting and reducing downtime in the field.
Plug-In Modular Design
Designed as a plug-in module for Fireye SB Series wiring bases, the SB560223AA allows for fast, straightforward installation, replacement, and servicing without rewiring — ideal for demanding industrial environments where uptime is critical.
Key Features
- 120 VAC SB Series burner management control
- Flame rod (flame rectification) flame detection
- Built-in purge cycle for safe pre-ignition chamber clearing
- Selectable 5 or 10 second trial-for-ignition (TFI)
- Microprocessor-controlled ignition sequencing, flame supervision, and safety lockout
- LED indicators for real-time status and fault diagnostics
- Plug-in modular design for easy installation and field replacement
- Suitable for industrial boilers, furnaces, and combustion systems
